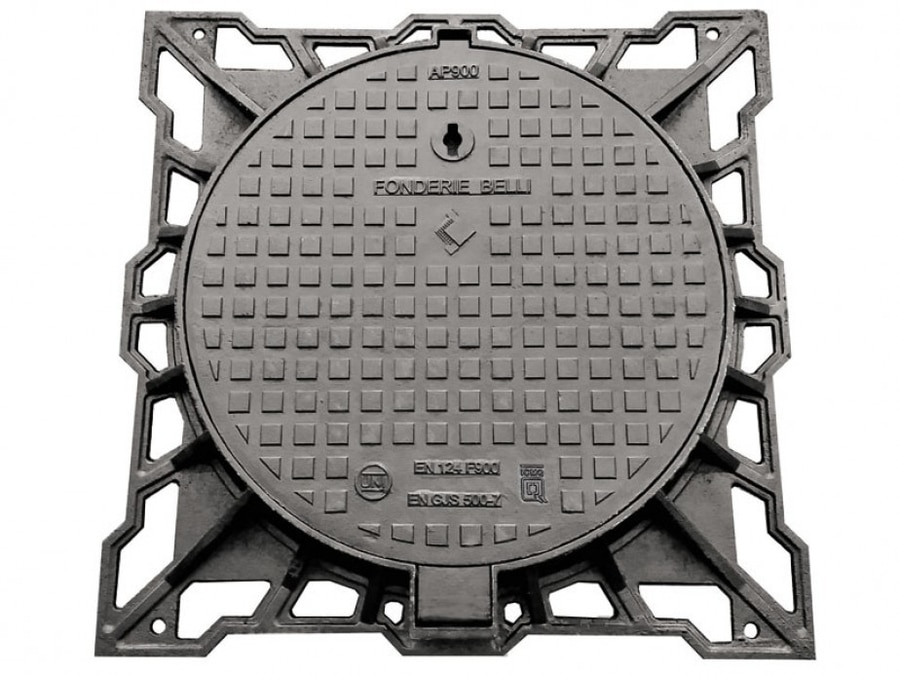

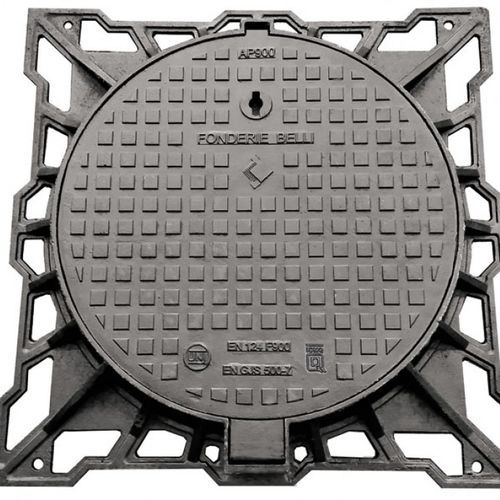

AIRPARK F900: The Heavy-Duty Ductile Iron Manhole Cover Designed for Extreme Load Conditions

Certified F900 ductile iron manhole cover engineered for airports, ports, and heavy traffic zones.

The AIRPARK F900 inspection manhole cover is a robust and high-performance solution made of ductile iron EN-GJS-500-7, compliant with EN 1563:2018 and EN 124:2015 standards. It offers an exceptional load capacity of over 900 kN (90 tons), meeting the highest F900 load class requirements for heavy-duty applications.

Frame

The frame is square-shaped with a circular internal passage, designed to ensure perfect alignment and stability. An elastomer gasket placed inside a dedicated groove enhances sealing, eliminates rocking and noise, and increases durability.
The external surface features a flanged and cellular structure, improving adhesion to cement mortar and allowing the installation of anchoring systems.

Cover

The circular cover is hinged to the frame with a maximum opening angle of 110°. At 90°, it locks automatically into the safety position, ensuring secure handling and easy access.
Thanks to self-centring guides and double support points on rectified contact surfaces, the cover maintains perfect stability during opening and closing.
The automatic elastic locking bar system provides smooth and safe operation without the need for disassembly.

Watertight System

In the MUS series, the cover is secured by three stainless steel bolts (Ø12 mm), guaranteeing watertight closure. The elastomer gasket ensures total sealing against water infiltration and environmental agents.

Surface and Safety Features

The top surface is non-slip and shaped to enable complete water drainage, preventing the accumulation of water or ice even under harsh weather conditions.

Technical Highlights

Ductile iron EN-GJS-500-7

Load class F900 (900 kN) – EN 124:2015 compliant

Watertight system with elastomer gasket and stainless steel bolts

Hinged cover with automatic safety lock at 90°

Anti-slip surface and full water drainage

Available in sizes:

AP900 – Frame 84×84 cm / Clear opening Ø60 cm / Height 10 cm / Weight 86 kg

AP1000 – Frame 100×100 cm / Clear opening Ø80 cm / Height 10 cm / Weight 119 kg

MUS80F – Frame 80×80 cm / Clear opening Ø60 cm / Height 10 cm / Weight 82 kg
