CRF F900: Modular Inspection Cover for Extreme Load Applications

High-performance ductile iron solutions for heavy-duty infrastructures

Developed by Fonderie Belli, the CRF F900 inspection cover represents the next generation of access covers designed for areas exposed to extremely high loads such as ports, airports, and industrial zones.
Manufactured in ductile iron EN-GJS-500-7, compliant with EN 124:2015 – Class F900, it offers a load-bearing capacity exceeding 900 kN (90 tons) while ensuring perfect fit and noiseless operation.

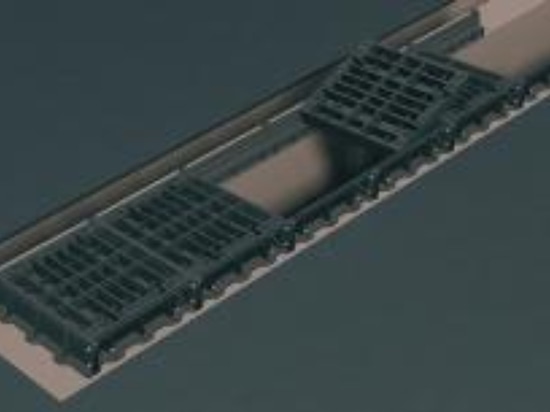

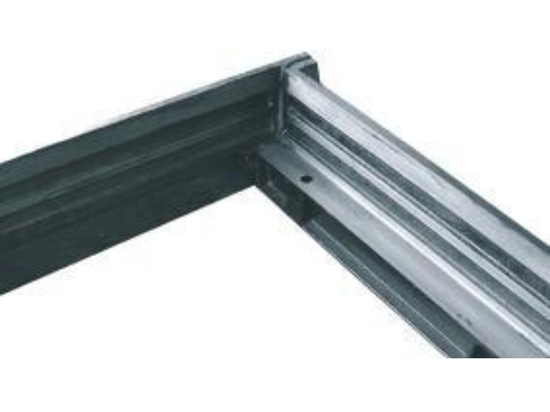

Precision Modular Frame

The cast frame, assembled with bolts, allows for continuous modular configurations to meet a wide range of installation requirements.
All contact surfaces are machined to guarantee an exact coupling between frame and cover, eliminating any gap.
With a 150 mm height and integrated levelling screws, it ensures precise installation and long-term stability.

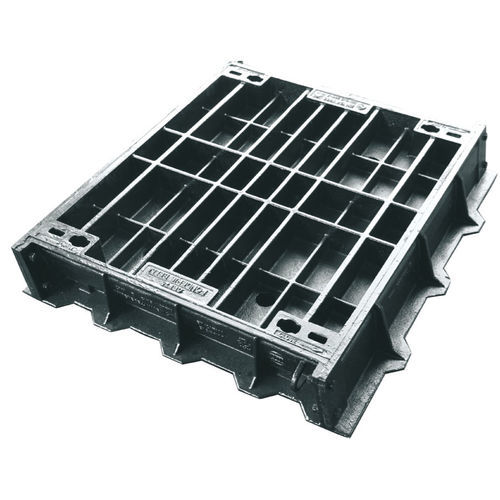

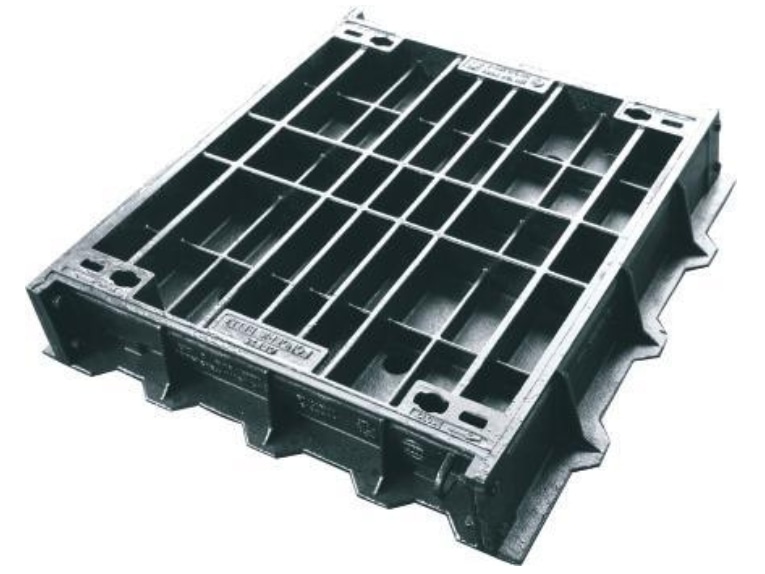

Recessed Cover: Tight and Silent

The ductile iron cover is engineered to provide maximum stability and noise reduction.
Machined contact surfaces, combined with a grease film and locking screws, ensure a watertight system.
The 80 mm deep recessed tray can be filled with concrete or other materials for a seamless integration with the surrounding surface.

Key Features

Material: Ductile iron EN-GJS-500-7

Load capacity: >900 kN (Class F900 – EN 124:2015)

Frame height: 150 mm

Recess depth: 80 mm

Watertight system: Grease seal + locking screws

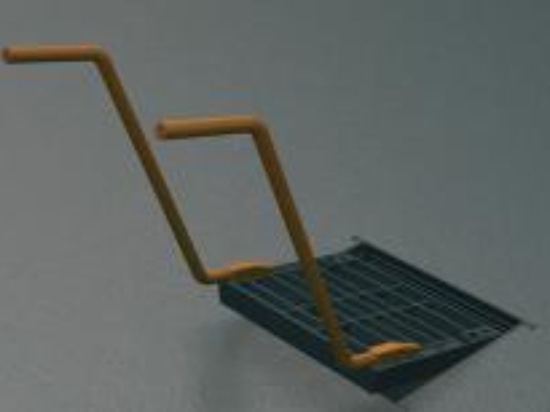

Lifting: 4 slots for lifting key type 06

Applications

Ports and airports

Industrial loading areas

Heavy traffic zones

Utility and inspection chambers

CRF F900 guarantees durability, precision, and reliability, combining mechanical accuracy with the robustness required for the most demanding infrastructures.
