What Is a Power Quality Analyzer?

A power quality analyzer is a key tool for checking how clean and stable your electrical supply really is. It spots problems early—voltage dips, spikes, noise, harmonics—so you can fix them before they shut down machines or damage equipment.

By continuously logging voltage, current, frequency, power factor and harmonic content, the unit gives a clear picture of network health. Trends that develop over days or weeks suddenly become visible, letting maintenance teams step in on their own schedule instead of after a costly failure.
Modern instruments store months of data on an SD card or push it straight to the cloud, so reports can be built from a desk or a phone. In plants where drives, welders and LED lighting all share the same bus, that visibility is priceless: a few extra volts of distortion can shorten motor life by years, and a single voltage sag can reset an entire line. Catching these issues early keeps utility bills down, extends asset life, and helps meet the power-quality clauses written into most supply contracts today. For anyone who has to keep the lights on and the machines running, a power quality analyzer is simply good insurance.

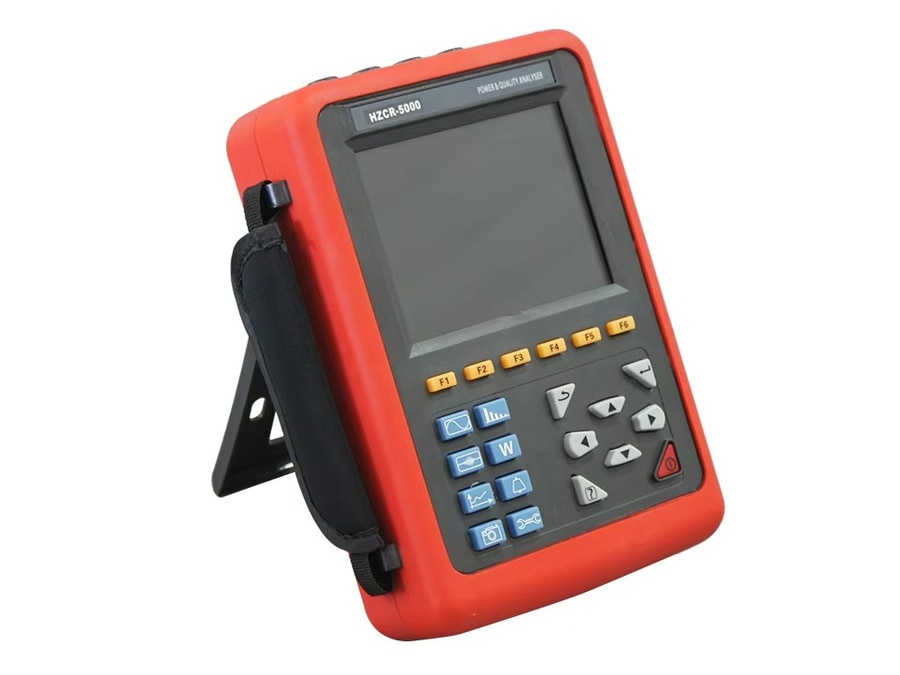

power quality analyzer.jpg
HZCR-5000 Power Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on. Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.
