What is a transformer ct pt analyzer?

In power systems, a ct pt analyzer is simply the field tool used to give current and voltage transformers a "health check." Its job is to confirm that these small but critical devices are telling the truth—accurately stepping high currents and volta

What CTs and PTs Actually Do

Current transformer (CT): Knocks a few kilo-amps down to 5 A or 1 A so instruments can measure safely. Potential transformer (PT): Drops tens or hundreds of kilo-volts to about 100 V for the same reason.

If either one drifts, you can end up with the wrong energy reading or a protection scheme that fails when it is needed most.

What the ct pt analyzer measures

Ratio – Primary versus secondary; is it still the name-plate value? Phase angle – Time shift between primary and secondary; too much shift corrupts power calculations and relay logic. Burden – How much secondary load the transformer can carry without losing accuracy.

A handheld unit delivers all three numbers in minutes. Higher-end models add excitation curves, knee-point location, DC winding resistance, polarity check, and on-board PDF report generation.

Why Test Regularly

Prevent failures – Inter-turn faults, core aging, or loose connections caught early cost little; left alone they cause outages. Protect revenue – A 0.2 class CT that slips to 0.5 can erase thousands of dollars of energy-accounting difference in a year. Stay compliant – IEC, IEEE and national standards all require verification before commissioning, after major maintenance, and on a set cycle. Utilities audit the paperwork.

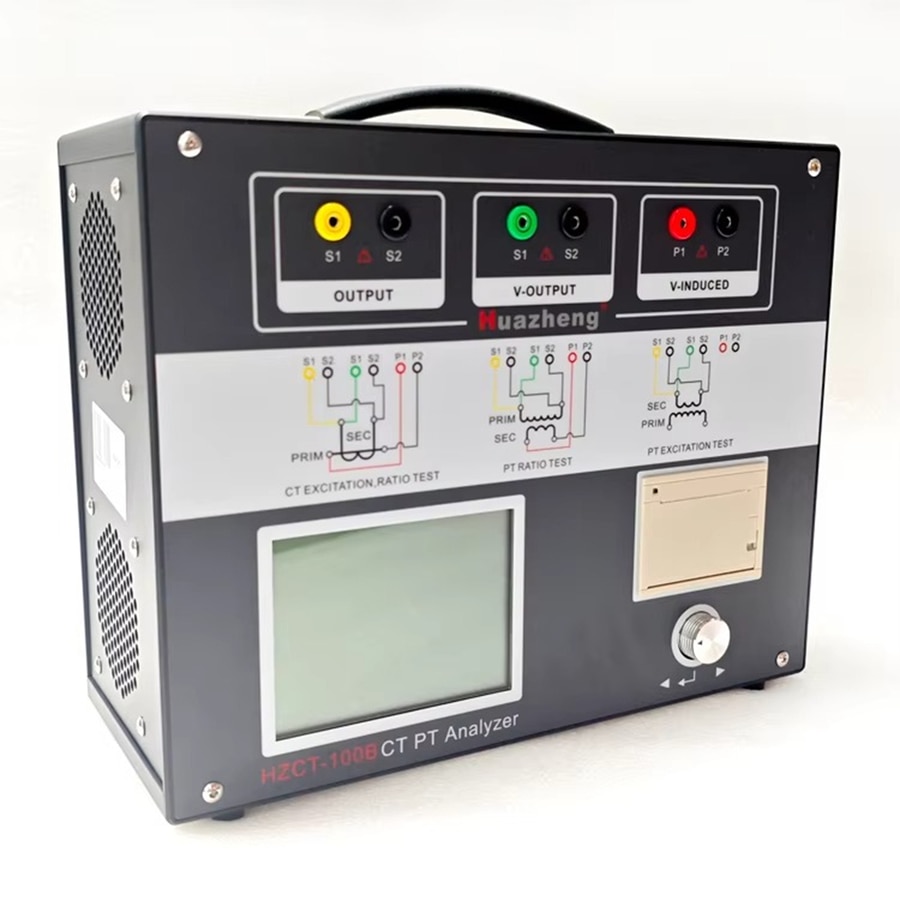

ct pt analyzer

The ct pt analyzer is the power industry's scale and watchman—first to keep metering honest, second to keep protection sharp. Throw it in the truck, Test Transformers on schedule, and you will swap a five-minute measurement for a five-day outage later
