What is the Relay Protection Tester?

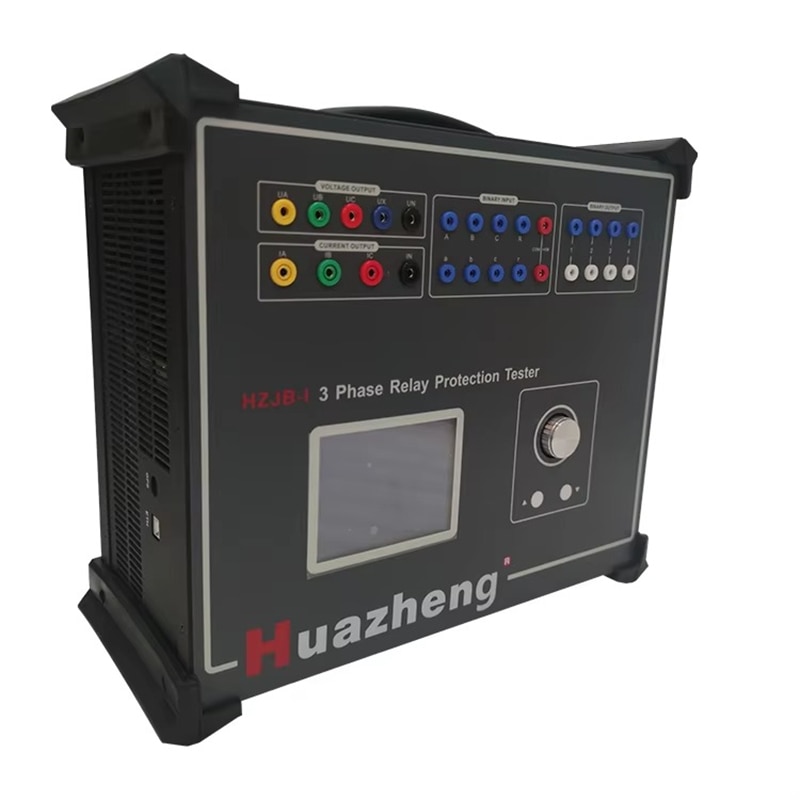

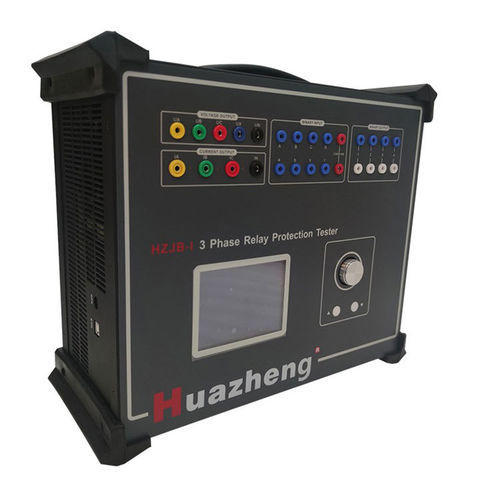

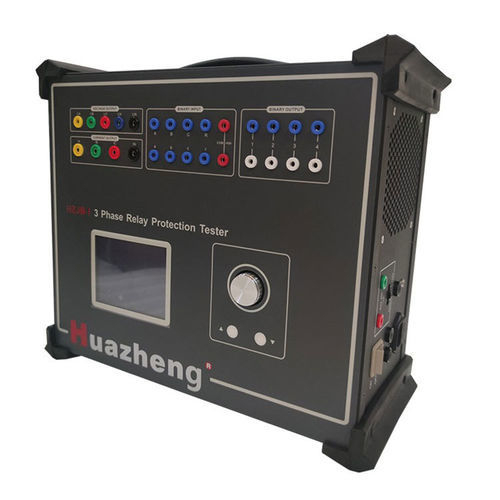

Relay protection tester is a piece of field kit built for one job: proving that the relays which guard a power network will trip when they must and stay quiet when they should not.

Relay protection tester is a piece of field kit built for one job: proving that the relays which guard a power network will trip when they must and stay quiet when they should not. It injects controlled currents, voltages and phase angles into the relay, reproducing the exact wave-shapes that appear during faults—an overcurrent spike, a voltage collapse, a phase reversal, a 5 A differential on a 1 A CT, whatever the setting sheet calls for. While the injection is running the unit measures pickup, timing, characteristic curve and contact behaviour; if any element is slow, fast or simply dead the tester flags it before the grid has to.

Relay protection testers work by injecting currents and voltages that copy what actually happens when a line is faulted—an overload, a dip in voltage, a missing phase, whatever the relay is meant to spot. Feed those signals in, watch the relay trip (or fail to), and you know if it will do its job when the real event arrives. Because relays decide which piece of plant gets switched out, proving they are fast, selective and reliable is the only way to keep the network intact and people safe.

Modern test sets let you store complete test routines, click “start” and walk through the whole sequence automatically. When the run is finished the box prints a pass/fail report and logs every pickup time, reset time and contact state. Review the numbers, compare them against the setting sheet, and you can see a drifted dial or a sticky flag long before it turns into a blackout.

The same instrument is used during commissioning, after a fault, or whenever the protection setting is changed. If a relay has sat in a substation for five years, a quick annual check with the tester will reveal drift in the reference comparator or a dry contact that has increased its resistance; both are fixed long before they can cause a false trip or, worse, a no-trip. In short, the Relay Tester is the pocket-sized insurance policy that keeps blackouts and arc-flash events off the evening news.
