Modular socket for IPM/IGBT

PMS Series

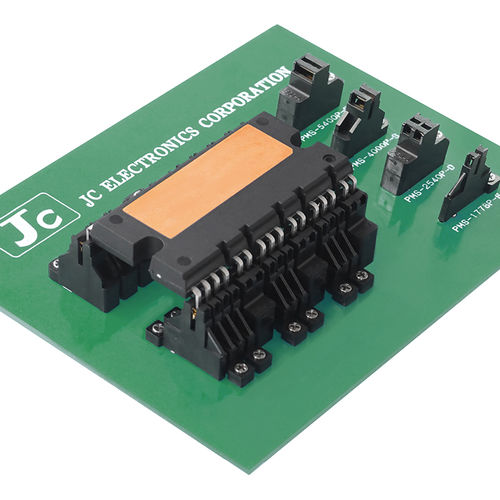

A module-type socket for large current packages (devices) compatible with power modules such as IPM and IGBT. With the smallest module size, it allows for a flexible layout by combining according to the target PKG.

More information

PMS-1778P-S

Modular Socket for Power Semiconductor Package Minimum pitch: 1.778mm For Power Transistor For SIP Package For Intelligent Power Module(IPM) PMS is an abbreviation for "POWER MODULE SOCKET" and it's dedicated for power semiconductor test. Able to make it match with target PKG with the smallest module upon your needs. Accepted devices include power ICs such as TO-3P, TO-220, and TO-262, as well as power modules such as IPM and IGBT.

Details

606 N First St, San Jose, CA 95112, USA

JC CHERRY INC.
