Test socket for IC devices

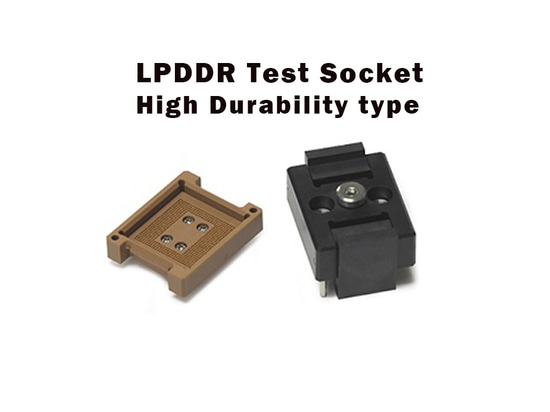

LPDDR Test Socket High Durability type

PS-BGA496-04P-2936-SC

LPDDR Test Socket High Durability type
For BGA,LGA
0.4mm pitch or more

Acceptable devices :
MDDR, LPDDR2, LPDDR3,
LPDDR4, LPDDR4X, LPDDR5

LPDDR (Low Power Double Data Rate) is one of the memory standards with low power consumption characteristics. It is primarily used in small electronic devices such as mobile devices and embedded systems, where high performance is desired while keeping power consumption low.

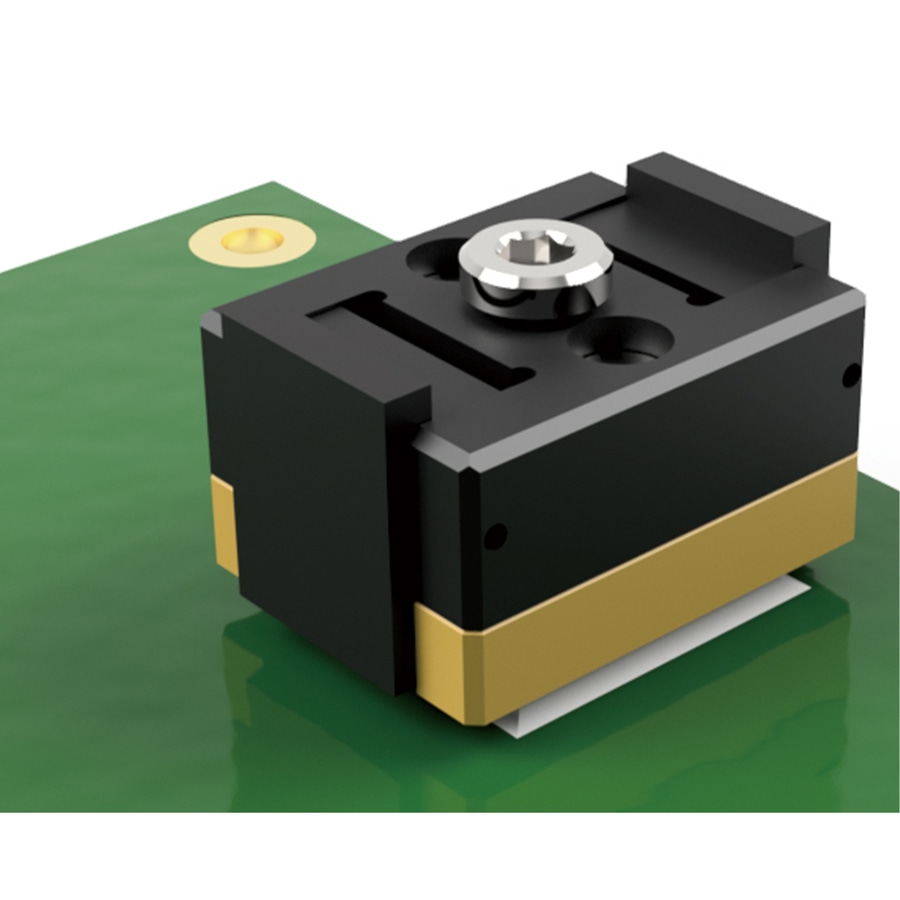

LPDDR socket of JC Electronics Corp. supports a 0.4mm pitch and a solder ball diameter of 0.25mm, allowing for easy attachment and detachment with left and right latches. By screwing in the upper nut, the measurement setup is prepared.

We accept custom designs tailored to your device and usage conditions.

[Specifications]
Current Rating : 0.5A
Contact Resistance : 100mΩ max
Durability : 10,000 Cycle min.
Operating Temperature : -55 to +150°C
Acceptable Device type : BGA, LGA, QFN, etc *

More information

PS-BGA496-04P-2936-SC LPDDR Test Socket High Durability type For BGA,LGA 0.4mm pitch or more Acceptable devices : MDDR, LPDDR2, LPDDR3, LPDDR4, LPDDR4X, LPDDR5 LPDDR (Low Power Double Data Rate) is one of the memory standards with low power consumption characteristics. It is primarily used in small electronic devices such as mobile devices and embedded systems, where high performance is desired while keeping power consumption low. LPDDR socket of JC Electronics Corp. supports a 0.4mm pitch and a solder ball diameter of 0.25mm, allowing for easy attachment and detachment with left and right latches. By screwing in the upper nut, the measurement setup is prepared. We accept custom designs tailored to your device and usage conditions.
