Introduction
As semiconductor technology advances toward smaller process nodes, higher wafer yields, and greater manufacturing precision, the demand for Ultra High Purity (UHP) gas delivery systems continues to grow. Among these systems, Ultra High Purity Gas Cabinets serve as the primary safety and process control equipment for delivering hazardous, toxic, corrosive, and high-purity process gases used in Chemical Vapor Deposition (CVD) and semiconductor etching processes.

Modern semiconductor fabs require gas delivery systems that not only ensure operator safety but also maintain gas purity levels measured in parts per billion (ppb). Even microscopic contamination can result in wafer defects, reduced yield, or equipment downtime.

This article explores the design, working principles, key components, safety features, material selection, and selection criteria of Ultra High Purity Gas Cabinets for CVD and etching applications.

High Volume High Pressure Oxygen Regulators
High Volume High Pressure Oxygen Regulators
What Is an Ultra High Purity Gas Cabinet?

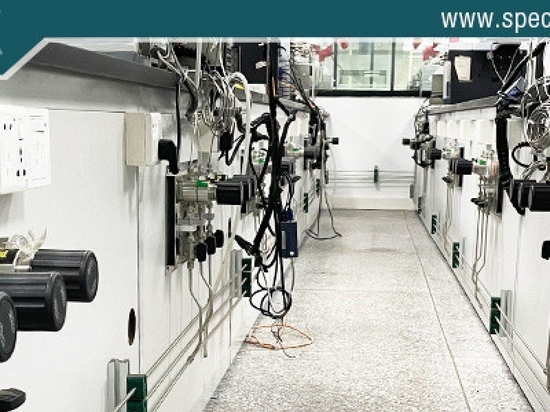

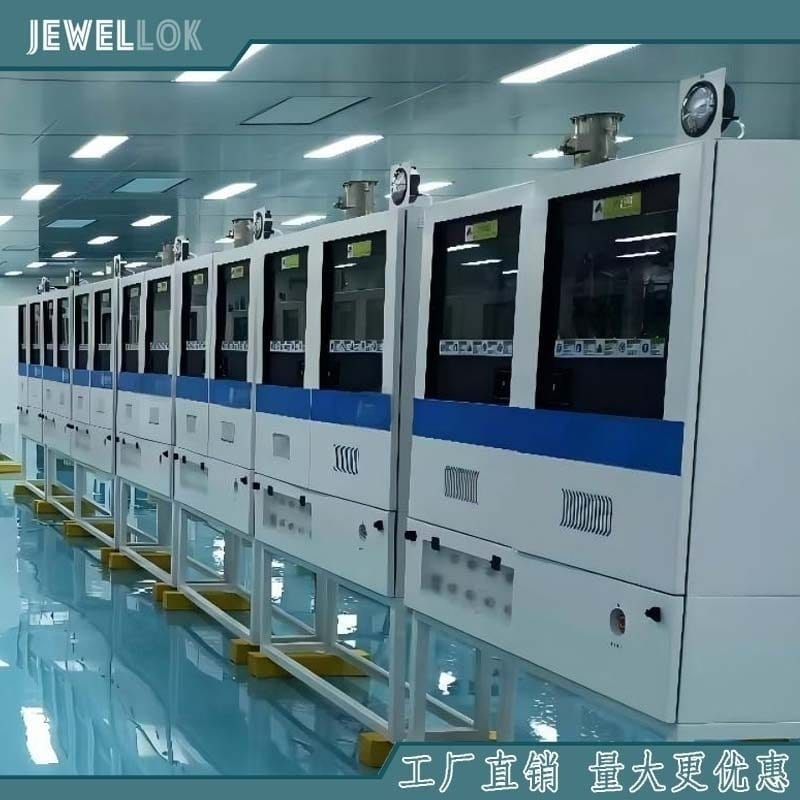

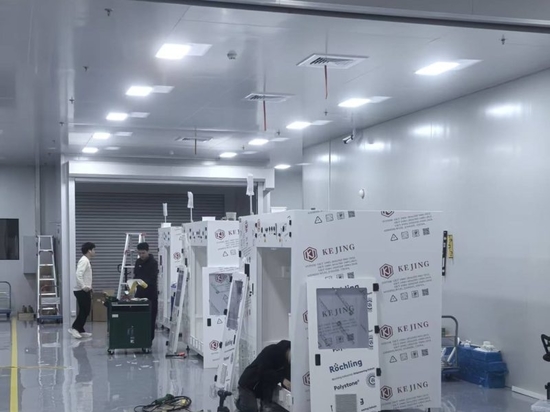

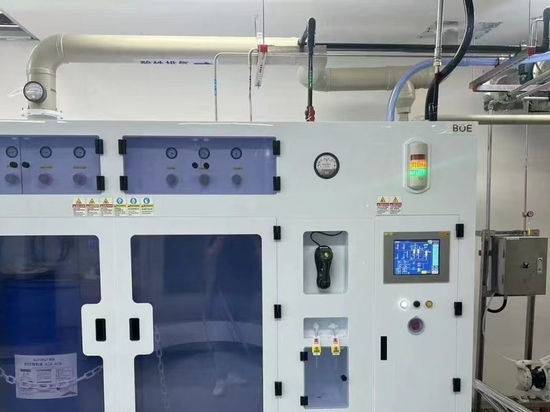

An Ultra High Purity Gas Cabinet is a fully enclosed gas delivery system designed to safely store, monitor, regulate, and distribute specialty process gases from high-pressure cylinders to semiconductor manufacturing equipment.

The cabinet isolates hazardous gases while providing automatic pressure control, leak detection, emergency shutdown, gas monitoring, and communication with the factory automation system.

Typical gases include:

Silane (SiH₄)
Ammonia (NH₃)
Hydrogen (H₂)
Nitrogen (N₂)
Oxygen (O₂)
Helium (He)
Argon (Ar)
Chlorine (Cl₂)
Hydrogen Chloride (HCl)
Boron Trichloride (BCl₃)
Tungsten Hexafluoride (WF₆)
Sulfur Hexafluoride (SF₆)
Nitrogen Trifluoride (NF₃)
Carbon Tetrafluoride (CF₄)
These gases are essential for thin-film deposition, plasma etching, chamber cleaning, oxidation, doping, and passivation processes.

Importance of UHP Gas Cabinets in CVD Processes
Chemical Vapor Deposition (CVD) is one of the most critical fabrication processes in semiconductor manufacturing.

During CVD, gaseous precursors react on the wafer surface to deposit extremely thin films.

Examples include:

Silicon Nitride
Silicon Oxide
Polycrystalline Silicon
Tungsten
Titanium Nitride
Since film thickness may only be several nanometers, gas purity directly influences:

Film uniformity
Electrical performance
Surface defects
Particle generation
Process repeatability
Ultra High Purity Gas Cabinets ensure stable gas pressure, precise flow control, and contamination-free delivery throughout the process.

Role in Semiconductor Etching Processes
Dry plasma etching removes unwanted materials from wafer surfaces using reactive process gases.

Common etching gases include:

CF₄
SF₆
NF₃
Cl₂
HBr
BCl₃
CHF₃
C₂F₆
These gases are often toxic, corrosive, or highly reactive.

Gas cabinets provide:

Safe cylinder storage
Automatic gas switching
Continuous pressure regulation
Emergency gas isolation
Integrated leak monitoring
Purge cycle management
Reliable gas delivery ensures consistent plasma characteristics and improves etch profile accuracy.

Main Components of an Ultra High Purity Gas Cabinet
A semiconductor-grade gas cabinet integrates multiple precision components into one intelligent system.

1. Cylinder Connection Assembly
The cylinder connection uses orbital-welded stainless steel tubing and metal gasket face seal fittings to eliminate potential leak paths.

Typical features include:

VCR fittings
CGA cylinder connections
Flexible pigtails
High-pressure isolation valves
2. High Purity Pressure Regulators
Pressure regulators reduce cylinder pressure to process pressure while maintaining exceptional stability.

High-performance regulators provide:

Low droop
Low decay
Minimal internal volume
High flow accuracy
Excellent pressure repeatability
3. Pneumatic Diaphragm Valves
Semiconductor gas cabinets typically use pneumatically actuated diaphragm valves for automatic operation.

Advantages include:

Ultra-low leakage
Fast response
Long cycle life
High corrosion resistance
Bubble-tight shutoff
Metal diaphragm valves are preferred for ultra-high purity service.

4. Mass Flow Controllers (Optional)
Some gas cabinets integrate Mass Flow Controllers (MFCs) to regulate precise gas flow before entering process equipment.

Benefits include:

High accuracy
Automatic recipe control
Digital communication
Stable process parameters
5. Purge System
Before cylinder replacement, purge systems remove residual hazardous gases using nitrogen or other inert gases.

Typical purge methods include:

Vacuum purge
Pressure purge
Automatic purge sequencing
Effective purging reduces contamination while improving maintenance safety.

6. Gas Leak Detection
Gas detectors continuously monitor cabinet interiors for hazardous gas leaks.

Depending on the process gas, sensors may detect:

Silane
Hydrogen
Chlorine
HCl
NH₃
Toxic gases
Oxygen deficiency
Leak detection immediately activates emergency shutdown procedures.

7. PLC Control System
Modern gas cabinets incorporate PLC-based automation with touchscreen Human Machine Interface (HMI).

The control system manages:

Valve sequencing
Pressure monitoring
Purge operations
Alarm management
Data logging
Remote diagnostics
Factory communication
Protocols commonly include:

Ethernet/IP
Modbus TCP
Profinet
DeviceNet
SECS/GEM
Material Selection for UHP Gas Cabinets
Material purity directly determines gas purity.

Common materials include:

316L VIM-VAR Stainless Steel
Vacuum Induction Melted / Vacuum Arc Remelted (VIM-VAR) stainless steel provides:

Superior corrosion resistance
Low sulfur content
Excellent weldability
Reduced particle generation
Better surface finish
Electropolished Tubing
Electropolishing removes microscopic surface imperfections.

Benefits include:

Reduced particle shedding
Lower moisture adsorption
Improved corrosion resistance
Easier cleaning
Typical surface roughness:

Ra ≤ 10 μin (0.25 μm)

Premium systems may achieve:

Ra ≤ 5 μin.

Metal Diaphragms
High-performance diaphragm valves often use:

Cobalt alloys
Hastelloy
Nickel alloys
These materials resist aggressive semiconductor gases while maintaining long service life.

Safety Features
Safety remains the primary objective of every gas cabinet.

Key safety systems include:

Automatic Shutdown
If abnormal conditions occur, the PLC automatically closes isolation valves.

Shutdown conditions include:

Gas leak
High temperature
Fire alarm
Power failure
Pressure deviation
Emergency stop
Ventilation System
Continuous exhaust ventilation prevents hazardous gas accumulation inside the cabinet.

Typical airflow ranges from:

200–500 CFM

depending on cabinet size and gas type.

Fire Protection
Many systems include:

Thermal sensors
Fire detection
Automatic suppression interfaces
Fire-rated cabinet construction
Emergency Stop Button
Accessible emergency stop buttons immediately isolate gas supply during emergencies.

Interlock Protection
Interlocks prevent unsafe operation such as:

Opening cabinet doors during gas flow
Replacing cylinders before purge completion
Starting processes with abnormal pressure
Single Cylinder vs Dual Cylinder Gas Cabinets
Single Cylinder Cabinets
Advantages:

Lower cost
Compact footprint
Simple maintenance
Suitable for:

Research laboratories
Pilot production
Low-volume manufacturing
Dual Cylinder Cabinets
Dual-cylinder systems support automatic cylinder changeover.

Benefits include:

Continuous gas supply
No production interruption
Higher equipment uptime
Improved productivity
These systems are widely used in 24/7 semiconductor fabs.

Typical Semiconductor Applications
Ultra High Purity Gas Cabinets are widely deployed in:

LPCVD
Low Pressure Chemical Vapor Deposition

PECVD
Plasma Enhanced Chemical Vapor Deposition

ALD
Atomic Layer Deposition

Dry Plasma Etching
Reactive Ion Etching (RIE)

Oxidation Furnaces
Diffusion Furnaces
Ion Implantation
Wafer Cleaning Systems
Epitaxy
OLED Manufacturing
LED Production
MEMS Fabrication
Photovoltaic Manufacturing
Advantages of Intelligent UHP Gas Cabinets
Modern semiconductor manufacturers increasingly choose fully automated gas cabinets because they offer significant operational benefits.

Major advantages include:

Ultra-high gas purity
Fully automated operation
Reduced human error
Improved wafer yield
Higher process consistency
Continuous production
Enhanced operator safety
Real-time diagnostics
Lower maintenance costs
Smart factory integration
Predictive maintenance capability
Remote monitoring support
These advantages contribute directly to higher equipment utilization and lower overall manufacturing costs.

Selecting the Right Gas Cabinet Supplier
Choosing the appropriate supplier is crucial for ensuring long-term reliability and regulatory compliance.

Key evaluation criteria include:

Semiconductor industry experience
Compliance with SEMI standards
High-quality UHP components
Precision orbital welding capability
Helium leak testing
Factory Acceptance Testing (FAT)
Complete documentation
Global technical support
Custom engineering capabilities
Fast spare parts availability
Manufacturers should also provide customized solutions based on specific process gases, cleanroom layouts, and automation requirements.

Future Development Trends
The next generation of semiconductor fabs demands even greater intelligence and automation.

Emerging trends include:

AI-assisted predictive maintenance
Industrial IoT connectivity
Digital twin technology
Cloud-based equipment monitoring
Smart gas consumption analytics
Remote diagnostics
Automated preventive maintenance
Energy-efficient cabinet designs
Enhanced cybersecurity
Integration with Industry 4.0 manufacturing systems
As semiconductor processes continue to evolve below the 2 nm technology node, gas delivery systems will require even tighter control over purity, pressure stability, and contamination prevention.

High Volume High Pressure Oxygen Regulators
High Volume High Pressure Oxygen Regulators
Conclusion
Ultra High Purity Gas Cabinets are indispensable components of modern semiconductor manufacturing, particularly in Chemical Vapor Deposition (CVD) and plasma etching processes. By combining advanced pressure regulation, contamination-free gas delivery, intelligent automation, and comprehensive safety protection, these systems ensure the stable and reliable supply of specialty gases that directly impact wafer quality and production yield.

From electropolished 316L stainless steel tubing and precision diaphragm valves to PLC-based control systems and automatic purge sequences, every aspect of a UHP gas cabinet is engineered to meet the stringent cleanliness and safety requirements of advanced semiconductor fabs.

As chip manufacturing technologies continue to advance toward smaller geometries and more demanding process windows, investing in high-performance Ultra High Purity Gas Cabinets is essential for maximizing equipment uptime, ensuring operator safety, maintaining gas purity, and supporting the next generation of semiconductor innovation.
