As semiconductor feature sizes continue to shrink in 2026, the demand for ultra-high purity (UHP) gas delivery systems has expanded beyond the most stringent ISO 1–5 environments into Class 10,000 (ISO 7) cleanrooms. These facilities, while less restrictive than leading-edge fabs, are critical for packaging, assembly, and specialty microelectronics. A complete integrated UHP system ensures that process gases—such as Nitrogen (N2), Argon (Ar), and reactive specialty gases—maintain contaminant levels below sub-ppb (parts-per-billion) thresholds from the source to the process tool.

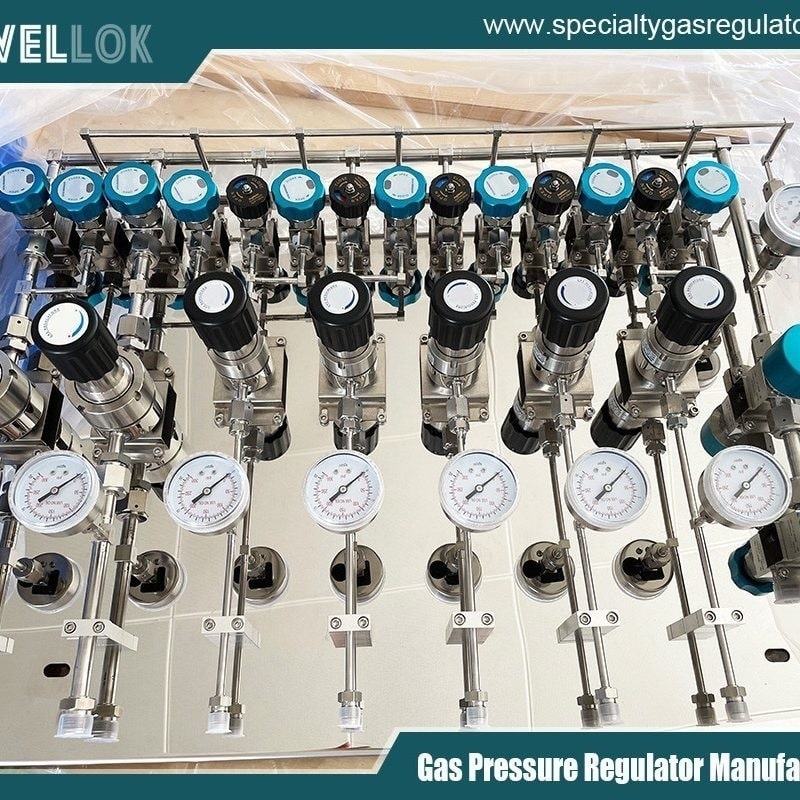

high pressure specialty gas regulators manufacturers
high pressure specialty gas regulators manufacturers
Cleanroom Classification Context (Class 10,000 / ISO 7)

A Class 10,000 cleanroom is defined by a maximum allowable particle count of 352,000 particles (≥0.5 µm) per cubic meter. For UHP gas systems operating within this environment, the challenge is maintaining gas purity (99.9999% or higher) while the surrounding ambient air is significantly more particulate-heavy than in an ISO 5 fab.

Key 2026 environmental requirements for these systems include:

Air Changes:60 to 90 air changes per hour (ACH) to ensure rapid particulate removal.
Positive Pressure:Maintaining higher pressure than adjacent spaces to prevent external contaminants from entering via gas line penetrations.
Leak Integrity:All UHP fabricated systems must be helium leak tested to ensure a pinhole-free environment, essential for both purity and safety.

Core System Components

1 Gas Source and Storage (Gas Cabinets)

The system begins at the gas cabinet, which houses high-purity cylinders. Modern 2026 designs utilize fully automatic control systems with touchscreen displays and automatic cycle purging to prevent contamination during cylinder changes.

Features:Integrated scales or pressure transducers for real-time monitoring and programmable limits for automatic changeover between process and purge cylinders.
2 Filtration and Purification

Inline purifiers are the “heart” of UHP systems, removing trace moisture, oxygen, and hydrocarbons.

Advanced Technologies:2026 trends see the integration of nanotechnology-based filters that target specific molecular-level impurities.
Specifications:Filters must capture particulates down to 0015 µm to ensure the gas stream remains significantly cleaner than the Class 10,000 ambient air.
3 Distribution Network: Piping and Welding

UHP distribution utilizes electropolished 316L stainless steel tubing. Electropolishing creates a smooth, non-reactive surface with a low roughness average (Ra), minimizing areas where particles or bacteria can become trapped.

Orbital Welding:All joints are joined via automated orbital welding in a controlled environment to eliminate human error and leak paths.
Fittings:face seal fittings remain the industry standard for leak-tight, high-purity integrity.
4 Control and Monitoring

Integrated sensors provide real-time tracking of gas quality.

Mass Flow Controllers (MFCs):Precisely regulate gas flow to match process requirements with high repeatability.
Analytical Systems:Cavity Ring-Down Spectroscopy (CRDS) and other high-speed analytical manifolds monitor for cross-contamination without fear of leakage.

Safety and Regulatory Compliance (2026 Standards)

Regulatory expectations in 2026 emphasize digital Quality Management Systems (QMS) and real-time monitoring.

Exhaust and Detection:Cabinets must be mechanically ventilated with at least six air changes per hour and equipped with ambient gas detection for toxic or flammable gases.
Interlocks:Emergency stop buttons and automatic shut-off valves must be interlocked with the cleanroom’s fire and safety alarms.
pressure regulator vs pressure relief valve
pressure regulator vs pressure relief valve
Conclusion

An integrated UHP gas handling system for a Class 10,000 cleanroom is a sophisticated synergy of electropolished hardware, precision control, and rigorous safety monitoring. By adhering to 2026 standards for orbital welding, helium leak testing, and real-time analytical monitoring, manufacturers can ensure high product yields and operational safety in increasingly complex semiconductor applications.
