Copper vs Aluminum Winding Transformers

Key Comparisons and Selection Guide

Copper vs. Aluminum Winding Transformers: Key Comparisons and Selection Guide

1. Efficiency & Design
Copper windings offer 100% IACS conductivity and 99.7% efficiency, with a compact design ideal for high-frequency/high-load applications (e.g., data centers). Aluminum windings have 61% conductivity, requiring 60% larger cross-sections for equivalent performance, but are lighter (48% of copper’s weight), making them suitable for budget-sensitive or portable projects. Copper maintains lower temperature rise and long-term energy savings, while aluminum performs close to copper under light loads but shows a 0.3% efficiency gap at full load.

2. Mechanical Strength & Reliability
Copper’s tensile strength (200-250MPa) far exceeds aluminum (70-100MPa), ensuring better short-circuit resistance and stable connections. Aluminum requires anti-oxidation treatments (e.g., tin plating) and optimized support structures due to higher thermal expansion (23.1×10⁻⁶/°C). Copper is low-maintenance, ideal for remote areas; aluminum needs periodic checks, fitting well-maintained environments.

3. Cost & Lifecycle
Aluminum windings save 15-20% upfront but incur higher long-term energy costs (0.1-0.3% lower efficiency). For a 1000kVA transformer, 30-year totals: copper 56,000vs.aluminum56,000vs.aluminum61,700. Copper’s cost gap pays off in 4-7 years at >4,000 annual hours. Aluminum suits low-load, temporary setups, or low-electricity-cost regions; copper excels in high-utilization scenarios.

4. Lifespan & Thermal Management
Both last 30-40 years, but aluminum is more sensitive to overload/corrosion. Aluminum’s lower thermal resistance may reduce overall temperature rise, yet localized hot spots (from unstable connections) pose risks. Modern solutions (e.g., fiber-optic monitoring) help mitigate this. Coastal/humid areas favor copper.

About Lushan Electronics
With 50 years of expertise in transformer/reactor manufacturing, we serve industries like renewables, healthcare, and rail transit. CE/TÜV-certified, we deliver tailored solutions balancing performance and cost globally.
[Website: www.hnlsdz.com | Contact: [email protected]]

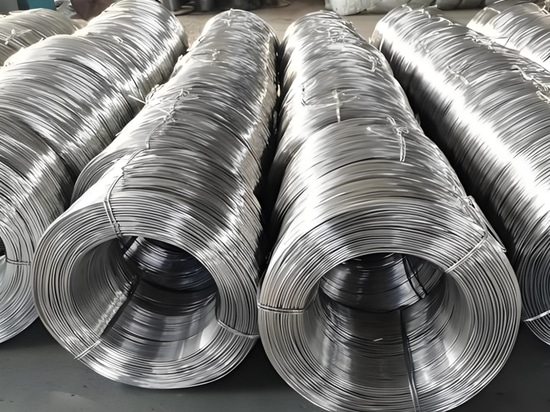

Aluminum Wire

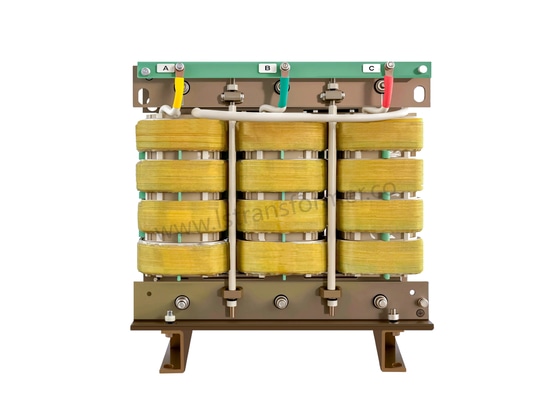

Copper Transformer

This transformer is used in the testing field and adopts a four split structure made of copper wire winding. During operation, the voltage fluctuates almost without any fluctuations and reaches the target voltage directly in milliseconds.
