Application Guide for Recycled Copper in Transformers

Usage guide and recommended application scenarios

Recycled copper wire is viable for transformers if meeting IEC/IEEE standards (conductivity ≥100% IACS, impurities ≤0.03%).

·Pros: 30% cost savings, 40% lower carbon footprint;
·Note: Slightly lower conductivity (99-101% vs virgin 101-102%), 1.5-2% higher load loss.
·Recommended for: Distribution transformers (≤2500kVA), temporary units;
·Avoid: Large transformers (≥10MVA).

Requires electrolytic refining and IEC 60468 testing for quality assurance.

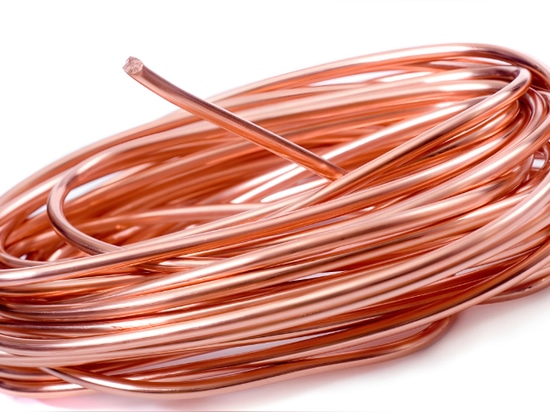

Native copper wire

We usually use this type of copper wire to produce transformers, unless the customer has special requirements for the wire

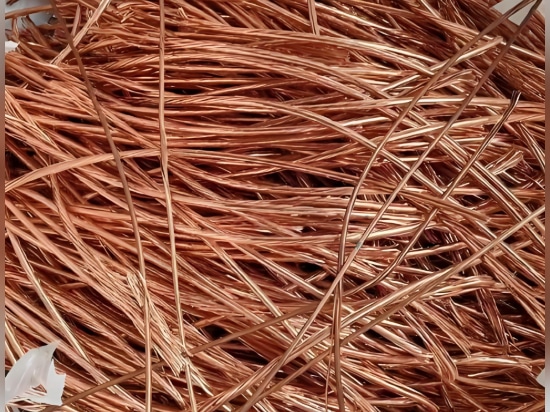

Recycled copper
