New in the norelem range: Machine feet with hollow screw

With the new machine feet with hollow screw, norelem expands its product range with a high-performance solution for large machines and systems, robots and automation.

Whether as a complete system or as individual components, individually combinable elements are highly attractive due to their high mechanical load capacity and flexibility.
Machine feet serve, among other things, to stabilize machines and optimize their position. They compensate for uneven floors, dampen vibrations, and distribute the load evenly, ensuring secure machine stability and reducing noise and vibration. They also improve working conditions and contribute to long-term protection of the floor and machine, extending their service life.

Safe, stable, precise

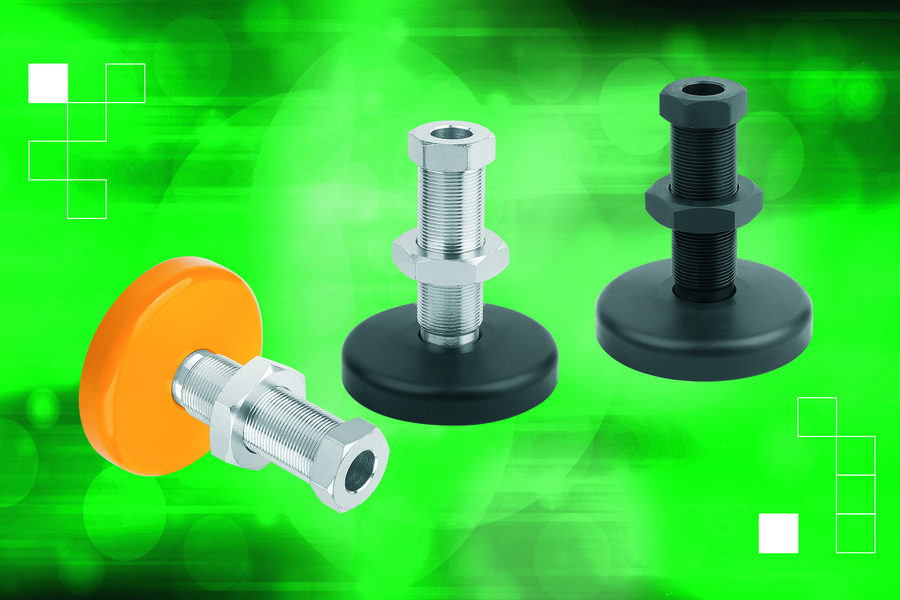

norelem is expanding its product range with a new series of very robust machine feet with hollow screws, designed for large machines and systems, particularly in robotics and automation. This new series includes four product families:
• Adjustable feet with hollow screws
• Hollow screws for adjustable feet made of steel in lengths of 85, 95, and 170 mm (galvanized or black phosphated)
• Adjustable foot plates made of steel in diameters of 100, 120, and 150 mm (painted yellow or black phosphated)
• Hexagon nuts, DIN 934

The hollow screw provides a firm anchorage in the floor—ideal for dynamic loads. The fine thread allows for extremely precise leveling, even on uneven surfaces or on slopes of up to 3°. The high load resistance, up to 60 kN (M24x2) or 90 kN (M36x2), makes these machine feet particularly suitable for heavy installations.

Grande facilité d’adaptation aux spécifications du client
Les clients peuvent acheter le pied de machine sous forme d’unité complète ou de pièces détachées, c’est-à-dire une plaque, une vis creuse à six pans creux et un écrou correspondant. La plaque et la vis ne sont pas fermement fixées l’une à l’autre, ce qui offre plus de flexibilité pour l'installation.
