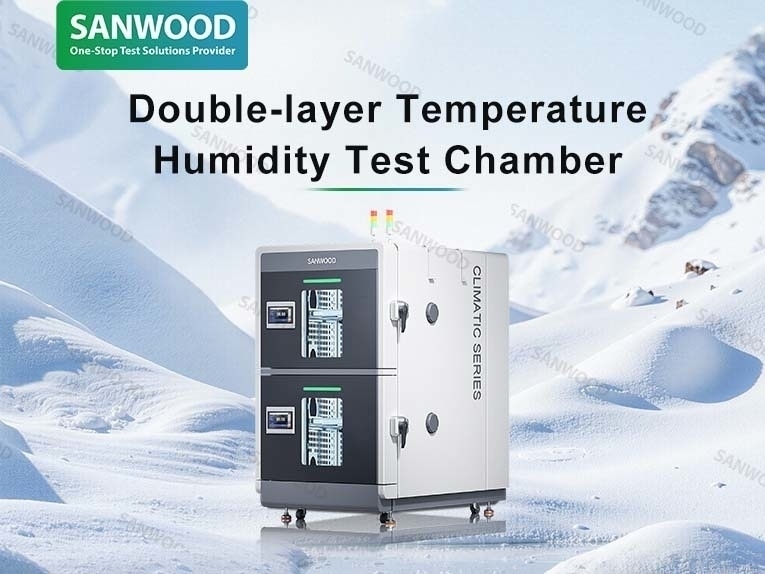

IEC 60068-2-30 Sanwood Technology Double-layer Temperature Humidity Test Chamber: Helping UAVs Improve Reliability

Sanwood Technology Double-layer Temperature Humidity Test Chamber has precise and customizable parameters, is energy-efficient and efficient, and provides a one-stop testing solution.

With the rapid development of the low-altitude economy, the reliability of products such as UAVs, avionics equipment, and airborne sensors faces higher challenges. Complex environmental factors such as high temperature, high humidity, and temperature difference between day and night directly affect the performance and life of equipment. Sanwood Technology Double-layer Temperature Humidity Test Chamber strictly follows the IEC 60068-2-30 test standard, simulates extreme hot and humid alternating environments, and provides accurate and efficient reliability verification solutions for low-altitude equipment, ensuring the stable performance of products under complex climatic conditions.

IEC 60068-2-30 is an environmental test standard issued by the International Electrotechnical Commission (IEC), which belongs to Part 2-30 of the IEC 60068 series. The standard cycle is usually 24 hours (12 hours of high temperature and high humidity + 12 hours of cooling/stabilization). It is used to evaluate the tolerance of components, equipment or other objects in the test simulation product in the high temperature, high humidity and condensation alternating environment (such as tropical climate, environment with large temperature difference between day and night).

Parameters of Sanwood Technology Double-layer Temperature Humidity Test Chamber
Sanwood Technology Double-layer Temperature Humidity Test Chamber can be customized according to the customer's parameter requirements. The following are the basic technical parameters:
Temperature range: -70℃～+150℃
Temperature fluctuation: ≤±0.5℃ (no load, constant state)
Temperature uniformity: ≤1.5℃ (-40.0℃～+100.0℃) (no load, constant state)
≤2.0℃ (+100.1℃～+150.0℃ or -70℃～-40.1℃) (no load, constant state)
Temperature deviation: ≤±1.5℃ (-40.0℃～+100.0℃) (no load, constant state)
≤±2.0℃ (+100.1℃～+150.0℃ or -70℃～-40.1℃) (no load, constant state)
Cooling rate: +150.0 ℃～-70.0 ℃, within about 100 minutes, the average of the whole process is 1.0～3.0 ℃/min.
Heating rate: -70.0℃～+150.0℃, within about 60 minutes, the average of the whole process is 3.0～5.0℃/min.
Humidity range: 20% RH～98% RH (+20℃～+85℃)
Humidity fluctuation: ±2.0%RH
Sanwood Technology Double-layer Temperature Humidity Test Chamber not only strictly meets the requirements of IEC 60068-2-30 cyclic damp heat test, but is also compatible with multiple international standards such as ISO 16750, ANSI/TIA/EIA 455-162A-1999, providing all-round reliability verification for low-altitude equipment.

Features of Sanwood Technology Double-layer Temperature Humidity Test Chamber
1. It has two independent temperature and humidity control systems, which can save energy and reduce operating costs.
2. It has programmable control function, can set fixed values/programs, and can set different temperature and humidity change curves and test times.
3. The volume, temperature and appearance of the test chamber can be customized as needed.
4. A more environmentally friendly, more efficient and safer carbon dioxide refrigeration system (GWP=1, ODP=0) can be optionally equipped.
Sanwood Technology Double-layer Temperature Humidity Test Chamber adopts a unique double-layer chamber design, which can simulate high temperature, low temperature, alternating humidity and heat, constant temperature and humidity and other environmental tests to meet the testing needs of various industries.

As the low-altitude economy develops rapidly, Sanwood Technology Double-layer Temperature Humidity Test Chamber uses professional testing capabilities to implement international standards such as IEC 60068-2-30, helping customers discover product defects in advance and providing a one-stop testing solution for the low-altitude industry. In addition to Double-layer Temperature Humidity Test Chamber, Sanwood Technology also provides Comprehensive Test Chamber, Large Altitude Test Chamber, and Altitude Test Chamber, supporting personalized customization services.

If you need professional testing solutions, please contact Sanwood Technology, and we will tailor professional services for you.
