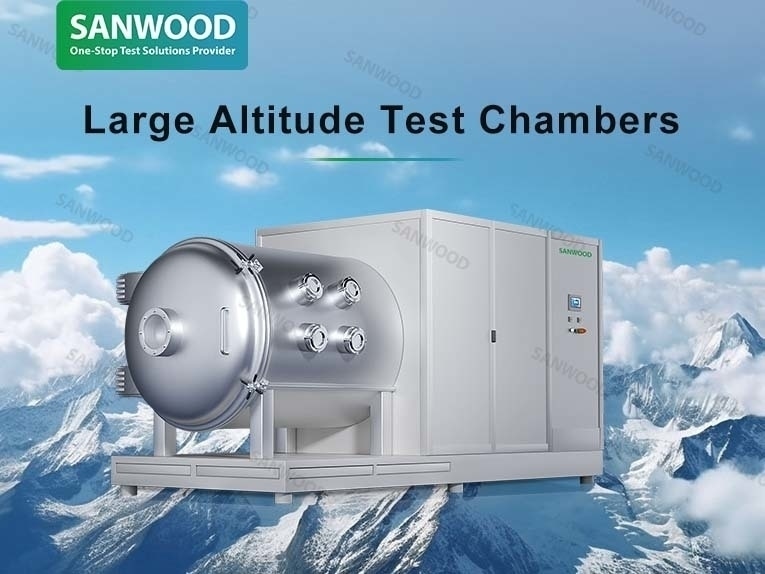

GB/T 32221-2015 Sanwood Technology Large Altitude Test Chamber: Boosting the Development of the Aviation Industry

Sanwood Technology Large Altitude Test Chamber, built strictly in accordance with GB/T 32221-2015, can accurately simulate the space environment under extreme vacuum and -70°C ~ +150°C conditions, providing highly reliable verification for aerospace

In humanity's quest for space exploration, the reliable operation of every satellite and spacecraft begins with countless rigorous extreme tests in ground-based laboratories. Sanwood Technology's Large Altitude Test Chambers are critical equipment for simulating space environments and verifying product reliability. They strictly adhere to the national standard GB/T 32221-2015, providing comprehensive support for aerospace customers from material testing to complete system validation.

GB/T 32221-2015, "Vacuum Technology - Vacuum Thermal Environment Simulation Test Equipment for Spacecraft - General Technical Requirements," is a national standard that regulates the design, manufacture, inspection, and acceptance of thermal vacuum and thermal balance test equipment for spacecraft (satellites, spacecraft, space probes, etc.). Its core purpose is to ensure that such critical equipment can simulate the vacuum, cold darkness, and solar radiation conditions of space on the ground, thereby verifying the performance, reliability, and lifespan of a spacecraft's thermal control system during in-orbit operation. This standard applies to vacuum thermal environment simulation test equipment operating at pressures between 1×10⁻² Pa and 1×10⁻⁴ Pa.

Sanwood Technology Large Altitude Test Chamber Basic Technical Parameters:
Sanwood Technology Large Altitude Test Chambers can be customized according to customer specifications. The following are the basic technical parameters:
Solar absorption coefficient of the heat sink's inner surface: as≥0.93
Hemispherical emissivity of the heat sink's inner surface: ℇH≥0.87
Heat sink temperature range: -70℃~+150℃
Mounting base plate temperature range: -70℃~+150℃
Heat sink average temperature change rate: ≥2℃/min
Base plate average temperature change rate: ≥2℃/min
Heat sink temperature uniformity: ±2℃
Base plate temperature uniformity: ±2℃
Ultimate pressure: ≤5×10-5Pa
Operating pressure: ≤1.3×10-3Pa

Sanwood Technology Large Altitude Test Chamber is a test device specifically designed to simulate high-altitude environmental conditions. It provides low pressure, low temperature, and dry conditions in a controlled environment. It is widely used in aerospace, electronics, materials science, and other fields to test the performance and reliability of products and materials in space environments. Its key features include:
1. Large Capacity: Compared to traditional test chambers, large high-altitude test chambers offer a larger interior space, accommodating larger equipment and samples.
2. High Altitude Environment Simulation: It can simulate high altitude conditions (such as 5,000 meters and 8,000 meters), low pressure, and low temperature, allowing for testing product performance in such environments.
3. Excellent temperature stability and uniformity, along with low pressure control.
4. The chamber's volume, temperature, and appearance can be customized upon request.
5. Programmable control allows for setting fixed values/programs, as well as varying temperature and humidity profiles and test duration.

Every step on the journey toward the stars and the sea requires solid verification on the ground. Sanwood Technology Large Altitude Test Chamber, based on the GB/T 32221-2015 standard, continue to empower the aerospace industry. Going forward, Sanwood Technology will continue to deepen its presence in aerospace testing, using technological innovation to advance industry safety standards and provide more reliable testing support for the aerospace industry. In addition to Large Altitude Test Chamber, Sanwood Technology also provides Comprehensive Test Chamber, High and Low Temperature Test Chamber, and Thermal Shock Test Chamber, supporting personalized customization services.

If you need professional testing solutions, please contact Sanwood Technology, and we will tailor professional services for you.
