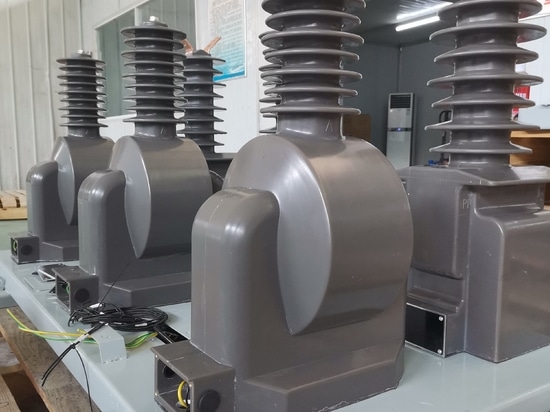

35KV HIGH VOLTAGE OUTDOOR COMBINED TRANSFORMER

Split Type combined transformer

Ⅰ.Structure introduction:

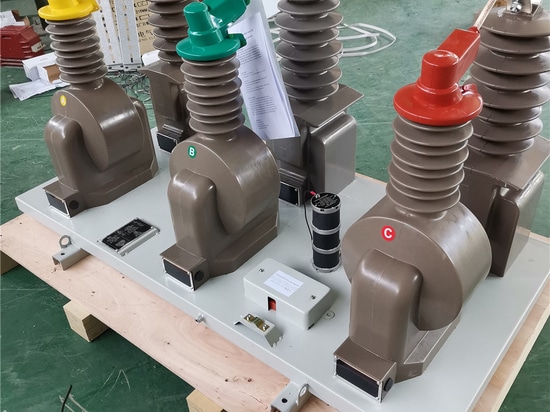

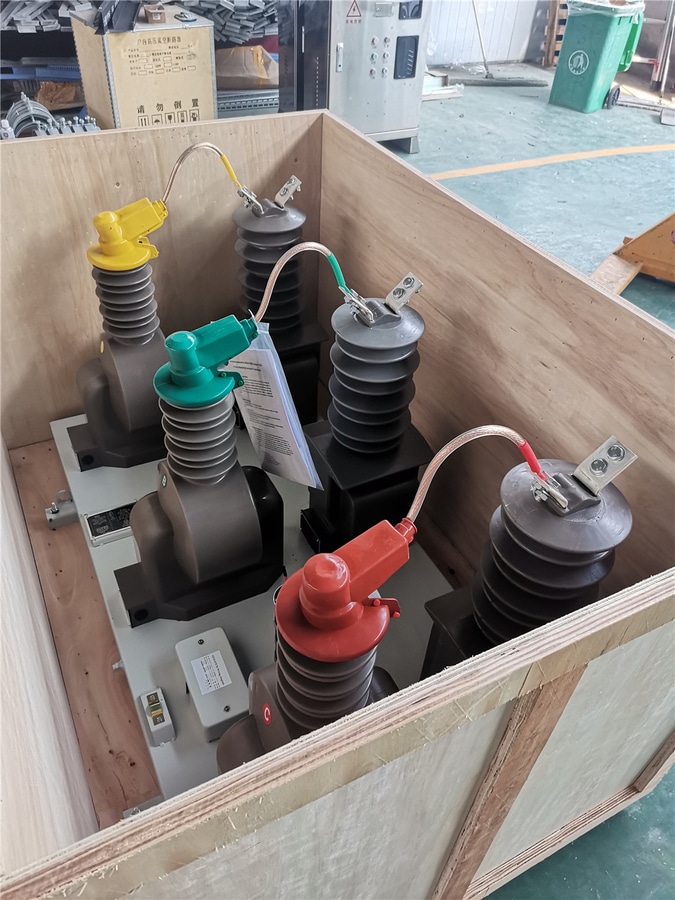

This product consists of a combination of multiple single-phase transformers.
The combined transformer is made of outdoor special epoxy resin vacuum casting. It is small and has the characteristics of high dynamic thermal stability, high precision, low magnetic density, overvoltage resistance, light weight, and convenient installation. The secondary winding of the current transformer has taps to obtain different current ratios.
There is a wiring protection box at the secondary outlet end, and there is a outlet hole under it, which is convenient, safe and reliable for wiring and can realize anti-theft measures. There are four mounting holes on the base channel steel for installation.

Ⅱ.Service conditions:
2.1 Installation site: Outdoor and indoor dual use.
2.2 Ambient temperature: -15~+55℃, average daily temperature does not exceed 35℃.
2.3 Altitude: ≤1000m
2.4 Air relative humidity: The monthly average relative humidity is not more than 90%;
The daily average relative humidity is not more than 95%.
2.5 Wind speed: ≤ 35m/s.
2.6 Atmospheric conditions: The place where there is no explosion, no violent vibration, and no dust or vapor that can corrode metals and damage insulation.

Ⅲ. Technical data:
3.1 Rated voltage: 34.5kV.
3.2 Accuracy class: 0.2, 0.2S
3.3 Rated voltage ratio: 34500/√3/120/√3V.
Rated primary current: 5~800 A.
Rated secondary current: 5A.
3.4 Rated capacity:
Voltage part: Class 0.2, 15VA. Current part: Class 0.2S, 5VA.
3.5 Rated short thermal current (Ith) multiple: 75I1n/1s.
Rated dynamic current (Idyn) multiple: 2.5Ith.
3.6 Rated insulation level: 36/70/170 kv
