HV COMBINED TRANSFORMER

Outdoor split-type combined transformer

This product consists of a combination of multiple single phase transformer. Each single phase transformer also is a small all-in-one combined transformer.

Ⅰ. Structure:

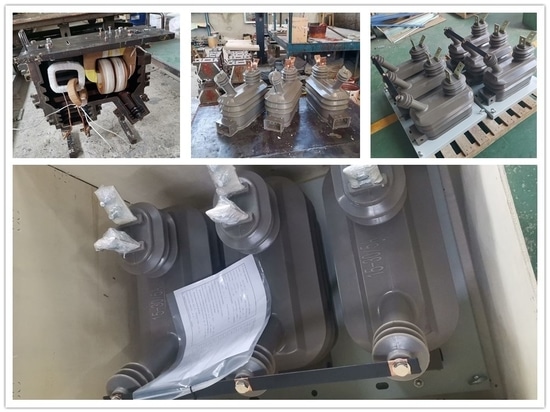

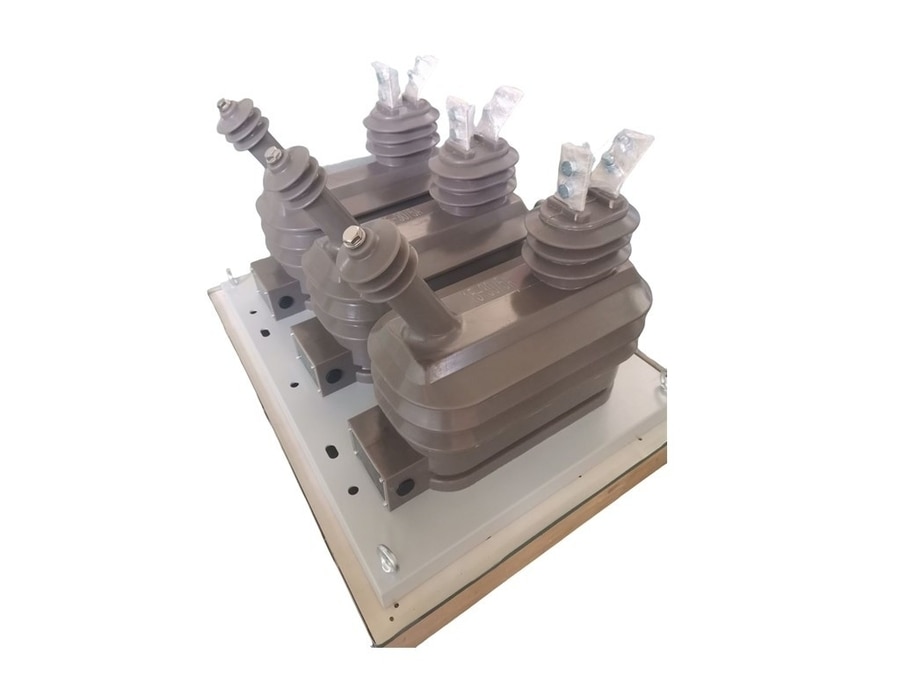

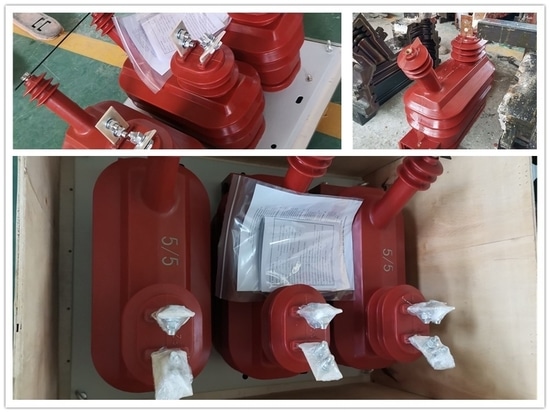

The combined transformer is made of outdoor special epoxy resin vacuum casting. It is small and assembled by 3pcs (three) single phase CT/PT combined transformer.

Ⅱ. Feature:
2.1. It has the characteristics of high dynamic thermal stability, high precision, low magnetic density, overvoltage resistance, light weight, and convenient installation.
2.2. The secondary winding of the current transformer has taps to obtain different current ratios.

Ⅲ. Service conditions:
3.1 Installation site: Outdoor and indoor dual use.
3.2 Ambient temperature: -15℃~+55℃, average daily temperature does not exceed 35℃.
3.3 Altitude: ≤1000m
3.4 Air relative humidity: The monthly average relative humidity is not more than 90%;
The daily average relative humidity is not more than 95%.
3.5 Wind speed: ≤ 35m/s.
3.6 Atmospheric conditions: The place where there is no explosion, no violent vibration, and no dust or vapor that can corrode metals and damage insulation.

Ⅳ. Technical data for reference:
4.1 Rated voltage: 13.2kV. Power factor cos 0.8, 1.2 times continus.
4.2 Accuracy class: 0.2, 0.2S
4.3 Rated voltage ratio: 13200/√3/120/120/√3V.
Rated primary current: 5~30 A.
Rated secondary current: 5A.
4.4 Rated capacity:
Voltage part: Class 0.2, 15VA.
Current part: Class 0.2S, 5VA.
4.5 Rated short thermal current (Ith) multiple: 80In.
Rated dynamic current (Idyn) multiple: 2.5Ith.
