ALL-IN-ONE INVERTER & BATTERY SYSTEM

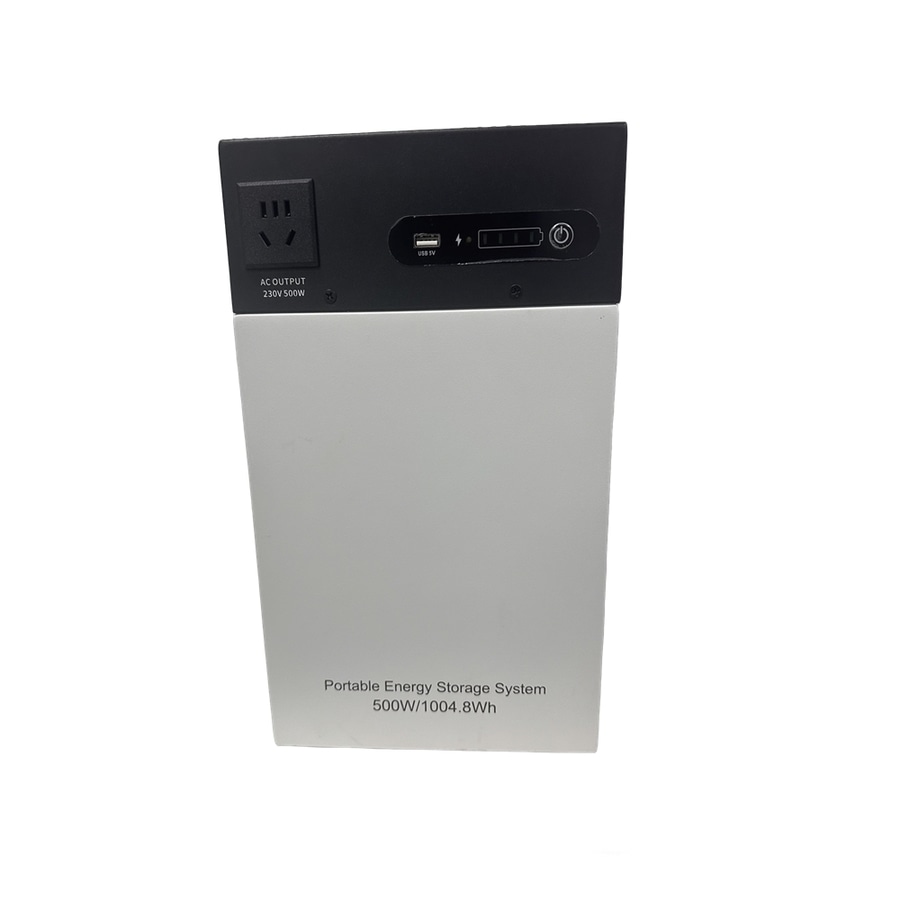

Portable Energy Storage Battery System All-in-One Machine 1KWH 500W

A portable inverter-integrated energy storage system, often referred to as an all-in-one portable power station, is a compact, integrated device designed to store electrical energy and provide AC/DC power output on the go. It typically combines a high-capacity lithium-ion or LiFePO4 battery pack, a pure sine wave inverter, multiple output ports, and a built-in battery management system (BMS) for safety and efficiency.

Feature:
1. Integrated design of Inverter and BMS
2. Long-life cycles: Cycles can reach 8000 times.
3. All around protection
4. Support solar charging. Wide MPPT range: 10-55V
5. Multiple communication interfaces:
1) Supports RS485 communication, lithium battery interface, dry contact.
2) Supports USB output & phone charging.

Technical specification:
MODEL: ESS 500W+1000WH
Rated AC Output Power: 500W
Output Voltage Waveform: Pure Sine Wave
Output Voltage: 185~230VAC 50Hz
Low DC Warning Point: ≤19%
Low DC Cut-off Voltage: 2.9Vdc
Low DC Warning Return Voltage: >20%
Charging Power (Utility and solar together): 500W Max
Bulk Charging Voltage: 3.6Vdc
Float Charging Voltage: 3.5Vdc
Max. Pulse Discharge Current(A): 300A 1Sec
