What Is WLL in Lifting Chains and How Is It Determined?

Understand lifting chain WLL, breaking strength, design factor and the key factors that determine rated lifting capacity.

Lifting chain WLL (Working Load Limit) is the maximum load that a lifting chain or chain sling is rated to handle under specified operating conditions. It is one of the most important specifications when selecting Grade 80, Grade 100, or other rated lifting chains.

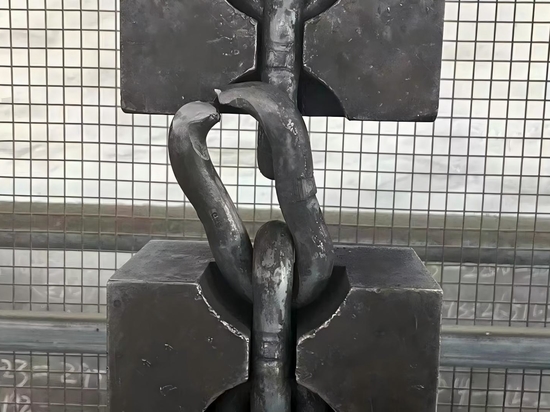

WLL should not be confused with breaking strength. Breaking strength refers to the load associated with failure during destructive testing, while WLL is the rated capacity intended for normal lifting operations. The difference between these values provides an important design margin.

For many alloy steel chain sling systems, a minimum design factor of 4:1 is used. In simplified terms:

Minimum Breaking Force ≥ 4 × WLL

For example, a chain rated with a 2-ton WLL under a 4:1 design factor would require a minimum breaking force of at least 8 tons. This does not mean the chain can be used to lift 8 tons—the permitted working capacity remains 2 tons.

Several factors determine the final lifting chain WLL:

Chain Grade → Chain Diameter → Material Properties → Manufacturing Quality → Heat Treatment → Testing → Applicable Standard

Grade also makes an important difference. Within comparable standardized systems, Grade 100 lifting chain generally provides a higher WLL than Grade 80 chain at the same nominal diameter. This is why chain capacity should never be determined from diameter alone.

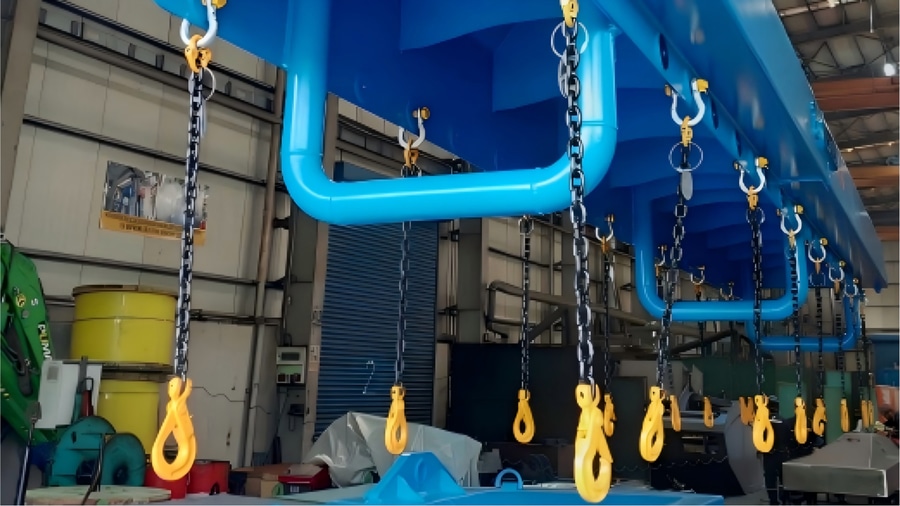

For chain slings, configuration must also be considered. A single-leg, two-leg, and four-leg sling made from the same chain can have different rated capacities. In multi-leg arrangements, increasing the sling angle from vertical increases the tension carried by each leg.

The complete lifting assembly also matters. Hooks, master links, connecting links, shortening devices, and other load-bearing components must have suitable ratings. A stronger chain cannot increase the WLL of a lower-rated component.

The practical selection sequence is:

Maximum Load → Sling Configuration → Sling Angle → Required WLL → Chain Grade → Chain Diameter → Verify Components

The key point is simple: WLL is the working capacity you should use when selecting a lifting chain—not its breaking strength.
