What You Need To Know About Thread Milling

What You Need To Know About Thread Milling

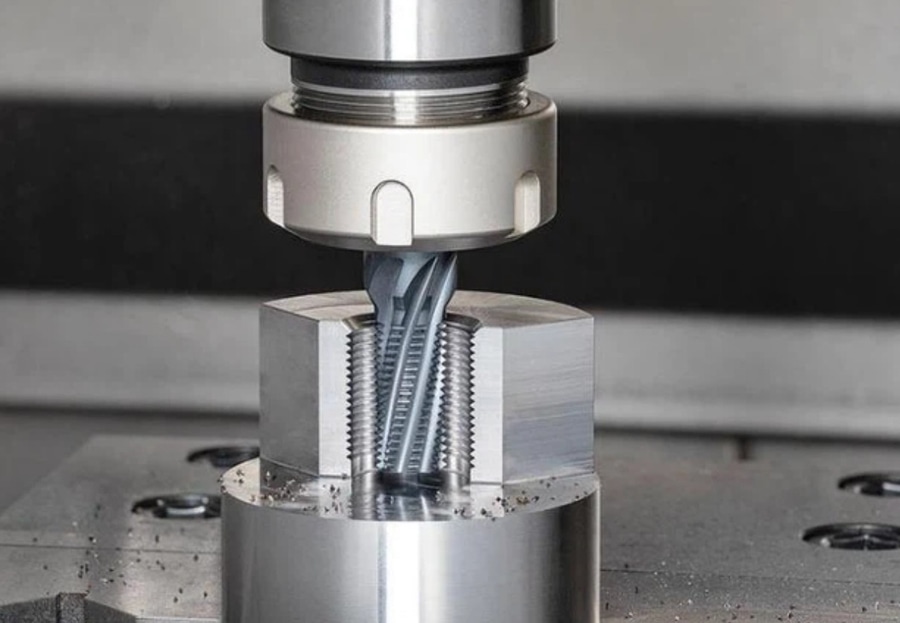

Thread milling is a precise method used primarily for large-diameter threaded holes, offering an alternative to traditional tapping. Instead of pushing or pulling a tap through a hole, thread milling uses a smaller rotating cutter that moves in a helical path around the hole. This technique allows for greater control over thread geometry and is particularly suitable for machining unique shapes and hard-to-machine materials.

The working principle of thread milling relies on synchronized movement across the X, Y, and Z axes, forming threads through gradual material removal. Unlike conventional milling, which creates flat surfaces, thread milling follows a helical path to form internal or external threads. The process supports various cutter types, including straight flute, helical flute, and single profile mills—each offering different performance advantages depending on material hardness, desired precision, and production scale.

Thread milling offers key advantages such as high precision, flexibility across thread sizes, reduced tool wear, and better performance in challenging materials. However, it also comes with drawbacks, including higher tooling costs, longer cycle times, and the need for CNC machines. Tool selection depends on production volume, hole size, and material type, with considerations for tool geometry, material, and coatings.

To ensure success, machinists must understand thread specifications, select appropriate tools, program CNC machines accurately, and monitor the process closely. Factors such as spindle speed, feed rate, coolant selection, and toolpath strategy all influence thread quality. Careful inspection and compensation adjustments during production help achieve consistent, high-tolerance threads. With its blend of accuracy and adaptability, thread milling is an ideal solution for complex, large-diameter thread applications.
