Horizontal Vs. Vertical Milling Machine: What's The Difference?

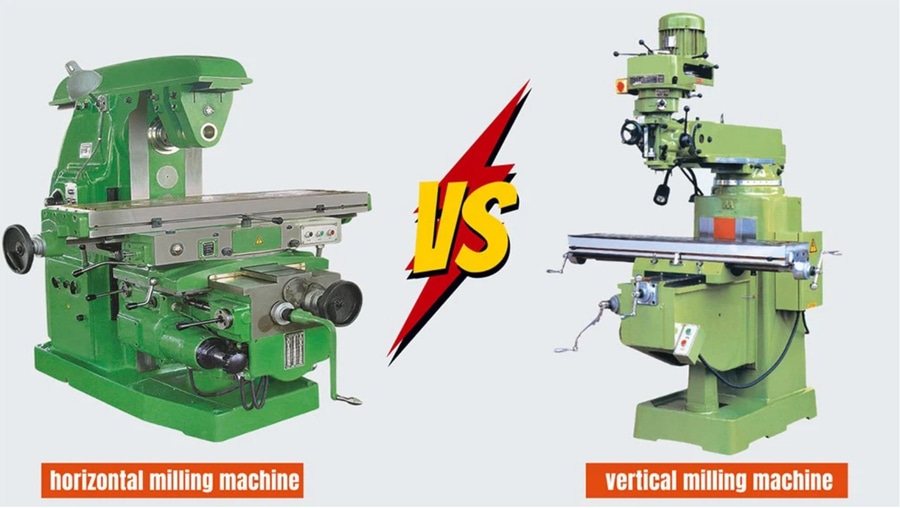

Horizontal Vs. Vertical Milling Machine

1. Introduction to Milling Machines

Milling uses rotating cutters to remove material and shape parts precisely. Vertical and horizontal mills differ mainly in spindle orientation, vertical mills cut from above, while horizontal mills cut from the side. This article explores the differences between them and guides users in selecting the right machine.

2. Horizontal Milling Overview

Horizontal mills have a horizontal spindle and use arbor-mounted cutters, making them ideal for deep cuts and heavy material removal. They're especially effective for large parts, slot cutting, gear machining, and multi-sided operations.

3. Vertical Milling Overview

Vertical mills feature a vertically oriented spindle and are well-suited for face milling, slotting, and drilling. They offer excellent visibility and are popular for precise surface work, tooling, and small batch production.

4. Key Differences

Ten major differences include spindle orientation, machine design, cutter type, material removal rate, precision, chip evacuation, work setup, operational versatility, cost, and ease of use. Each design supports different machining strengths.

5. Pros and Cons of Horizontal Mills

Horizontal mills offer stability, deep cutting capability, and efficient chip removal, making them great for production work. However, they’re more expensive, take up more space, and are less versatile for intricate operations.

6. Pros and Cons of Vertical Mills

Vertical mills are compact, easier to use, and cost-effective for shops starting out. They are ideal for fine work but may struggle with deep cuts, chip removal, and multi-face machining without repositioning or special equipment.

7. Choosing the Right Machine

The right choice depends on factors like part geometry, material type, surface finish, volume, and budget. Horizontal mills are better for high-volume, multi-face parts; vertical mills suit precision, low-volume, and face-oriented tasks.

8. CNC Milling and HLC Services

CNC technology enhances both machine types, allowing complex, precise machining with minimal manual input. HLC offers both vertical and horizontal CNC milling services, providing flexibility for custom prototypes or mass production.
