Insert Molding Vs. Overmolding: A Complete Guide

Insert Molding Vs. Overmolding

1. Introduction and Core Difference

Insert molding and overmolding are both advanced molding processes that combine multiple materials into one integrated part. The key distinction lies in material pairing: insert molding encapsulates non-plastic components such as metal or ceramic within plastic for strength and function, while overmolding adds one plastic over another, usually a softer elastomer over a rigid substrate, for grip, sealing, or aesthetics.

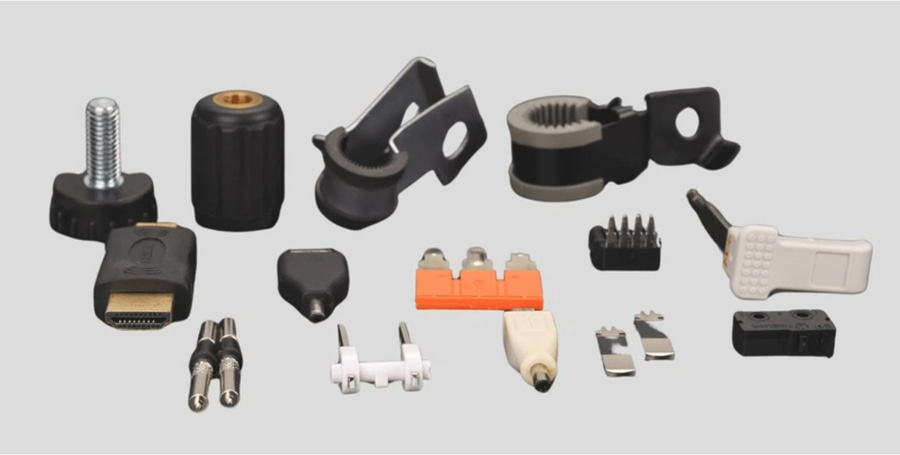

2. What Is Insert Molding?

Insert molding places a pre-formed insert, often metal, into a mold cavity before injecting molten plastic around it. This creates a single, unified part with built-in strength, threads, or conductive features. It reduces assembly steps, eliminates the need for fasteners, and produces highly durable parts commonly used in automotive, electronics, and medical devices.

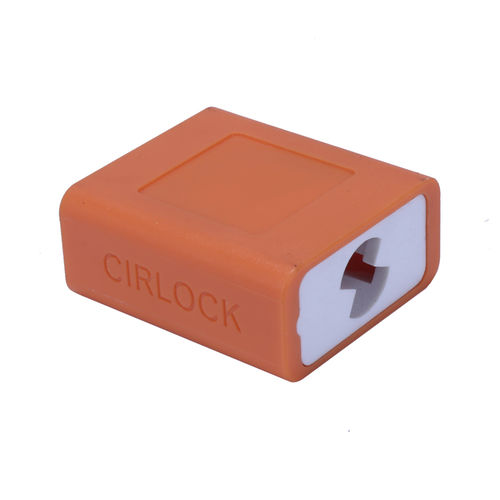

3. What Is Overmolding?

Overmolding builds on an already molded substrate by adding another layer of plastic, often a soft-touch thermoplastic elastomer (TPE, TPU, silicone). This enhances comfort, appearance, and functionality. Overmolding is widely used for ergonomic grips on tools, waterproof casings, and consumer electronics that require both hardness and softness in one product.

4. Processes: Injection vs. Compression Molding

Both techniques are usually performed with injection molding but can also use compression molding. Insert molding with injection involves placing inserts into the mold, then injecting plastic around them. Overmolding with injection requires a two-step cycle—first molding the substrate, then overmolding it with a softer material. Compression molding versions follow similar steps but are used more for thermosets or rubber parts.

5. Production Speed and Cost

Insert molding is generally faster since it requires only one molding cycle. Overmolding takes longer due to its two-stage process, especially when transferring the substrate. Cost-wise, insert molding has lower tooling costs but can incur labor or automation costs for handling inserts. Overmolding requires more complex tooling and longer cycles but adds product value through comfort, sealing, and design versatility.

6. Material Selection and Bonding

Insert molding often bonds rigid metals like brass, steel, or aluminum with plastics such as ABS, PA, or PC through mechanical interlocks or adhesives. Overmolding focuses on achieving chemical or surface adhesion between rigid plastics and elastomers like TPE or silicone. Proper surface treatments, primers, and mold design are critical for successful bonding in both methods.

7. Design Considerations and Applications

For insert molding, inserts should include grooves, knurling, or textured surfaces to ensure strong encapsulation. For overmolding, designers must manage wall thickness, draft angles, and undercuts to avoid shrinkage or detachment. Insert molding is ideal for structural parts and electronic connectors, while overmolding excels in soft-touch grips, wearable devices, and waterproof consumer products.

8. Conclusion: Choosing the Right Process

Both processes eliminate secondary fasteners and improve product integration, but the choice depends on design intent. Insert molding is best when strength, reinforcement, or electrical pathways are required, while overmolding is the choice when user comfort, aesthetics, or sealing is essential. With advances in automation and multi-shot molding, both methods continue to expand in automotive, medical, consumer, and industrial applications.
