HTEC-video's Next Generation of Infrared Scanning Technology Enhances Kiln Reliability and Maintenance Efficiency

A high-resolution thermal monitoring solution designed to reduce unplanned downtime, extend refractory life, and support predictive maintenance in cement rotary kilns.

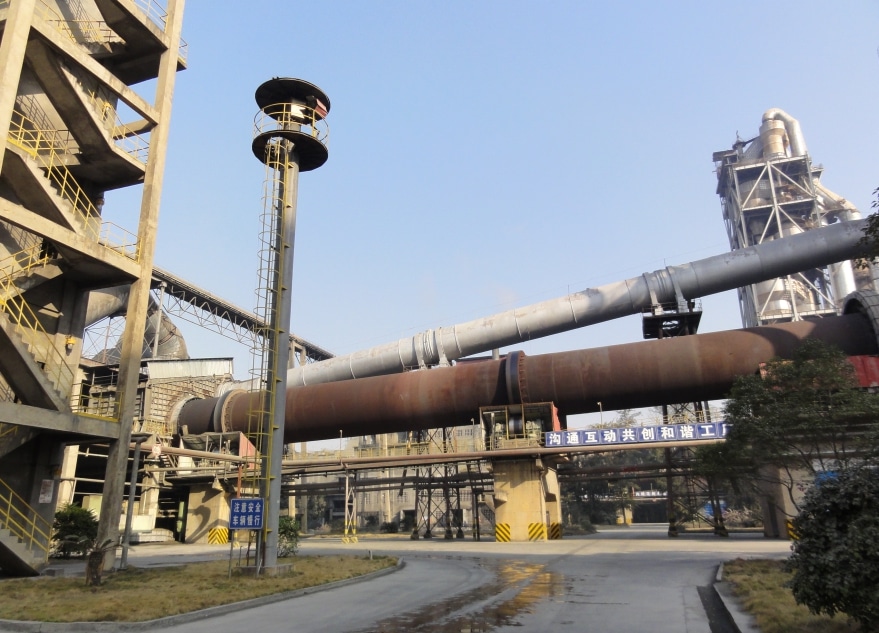

As cement producers place increasing emphasis on the safe operation of rotary kilns and preventive maintenance strategies, the infrared kiln shell temperature scanning system developed by HTEC-video has emerged as a vital technology for monitoring equipment conditions, detecting anomalies, and preventing costly kiln damage.

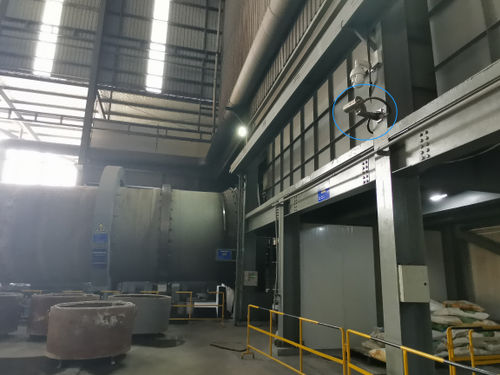

Conventional spot temperature measurement methods suffer from narrow viewing angles and delayed response times, making them inadequate for capturing the complex and dynamic thermal patterns of the burning zone. In contrast, the HTEC-video system adopts fully imported infrared sensing components, offering rapid response, high temperature measurement accuracy, and excellent operational stability. At a typical installation distance of 30 meters, the system can detect thermal spots as small as 5 cm, with a scanning range of up to 120 degrees, enabling comprehensive, real-time thermal visualization of the kiln shell. This significantly improves early detection and intervention for issues such as flame instability and refractory wear.

Mr. Zhu, Technical Director at HTEC-video, stated:“Traditionally, achieving continuous, non-contact monitoring of the rotary kiln burning zone has been a major technical challenge. With HTEC-video’s infrared scanning solution, this challenge has been effectively overcome. Cement plant operators are seeing clear benefits — including improved clinker burning stability, precise combustion control, extended refractory service life, reduced unplanned downtime, and lower energy consumption. Collectively, these improvements contribute to enhanced operational efficiency and equipment reliability.”

Key technical highlights include:

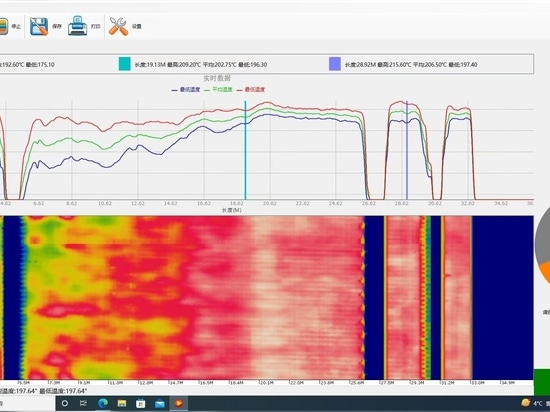

Panoramic Scanning Field: Covers the entire length of the rotary kiln shell, generating high-resolution 2D thermal maps in real time, allowing fast identification of refractory loss, hot spots, and other anomalies;

Tailored Temperature Range: Supports measurements from 50°C to 600°C, optimized specifically for kiln shell and burning zone monitoring;

High Scanning Performance: Frequency ranges from 20Hz to 150Hz, with temperature resolution up to ±2°C, meeting the needs of high-frequency dynamic temperature variation monitoring;

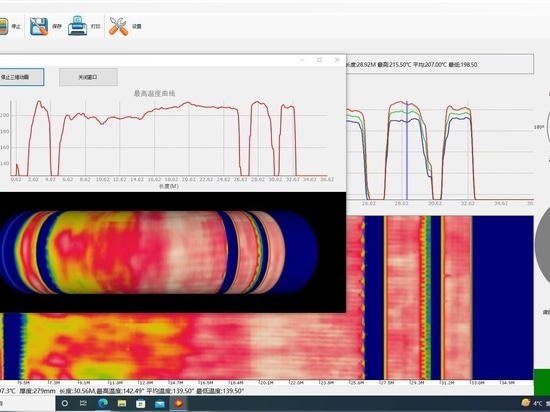

HeatPro Professional Analysis Platform: Offers zone tracking, smart alarms, trend analysis, automated reporting, and kiln speed monitoring, with seamless integration into plant automation and control systems.

As demands grow for better product consistency, energy management, and digitalization, more cement producers are adopting thermal imaging-based process monitoring systems, accelerating the shift from experience-based operation to data-driven process management.

The HTEC-video system captures millions of temperature data points per second, enabling detailed and continuous thermal monitoring across the entire kiln shell. Through a centralized control room interface, operators can monitor flame position shifts, thermal anomalies, and potential refractory voids in real time — enabling early warning, rapid response, and full traceability. This contributes significantly to safe and efficient kiln operation.

Project data shows that after implementation, customers saw a 5–7% reduction in kiln heat consumption, over 10% improvement in clinker yield, significantly longer refractory lifespan, and a notable decrease in unplanned downtime. HTEC-video’s infrared scanning system is helping cement plants build a more efficient, reliable, and intelligent rotary kiln operation framework.
