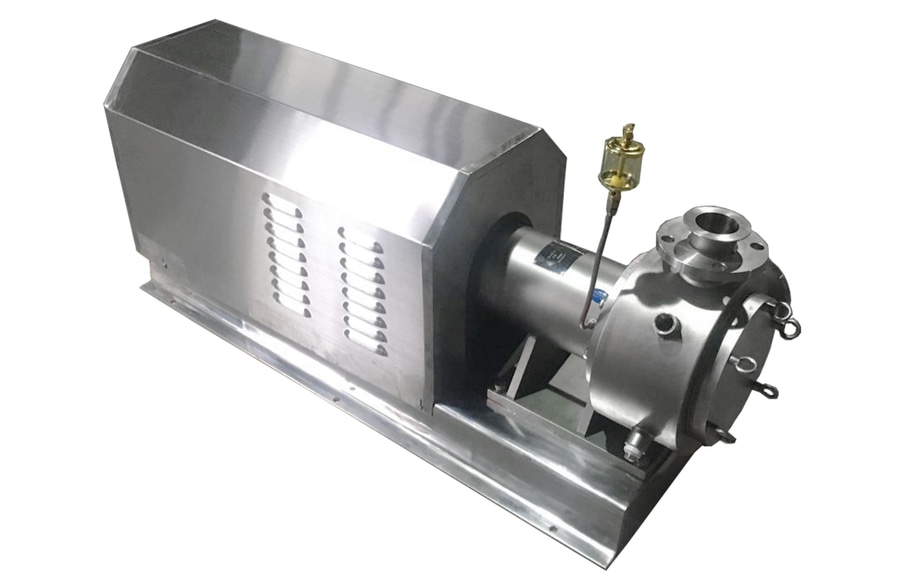

SINE PUMPS of different structures

How much do you know about the principle of a sine pump？

Any exquisite product or good functional product has a simple structure---including few components….sine pump is not an exception.
The sine wave shape of impeller means a cavity can be formed at every rotation (4 cavities can be formed every passing the lining space). This operation can "push" or "release" flowing products.
The pump cavity is divided into suction chamber and extraction chamber by control panel to ensure pressure tolerances at exit and entrance. Meanwhile, control panel plays another important role to lubricate the pump bearing by product in compulsion.
Sine pump----excellent efficiency, high viscosity Best selection of super low shear feeding
Super low shear feeding Although with a great deal of solid particle and fragile product A safe and no damage feeding can be provided
High viscosity performance reaches the limit of flowing capability
Can reach 4,000,000cps
No pulse, stable feeding
Flow cubage adjustment precisely, without interference and shock.
Filling machine can supply a stable product dose evenlySine pump:
Special two sine-curve-like vane is taken, instead of rotor, epicyclic gear or piston, and it runs with a movable panel and a fixed line, forming a special volume pump and realizing liquid super low shear, without pulse feeding, although in condition of 10bar back pressure (water feeding), there won't be any movement on pressure gauge.
