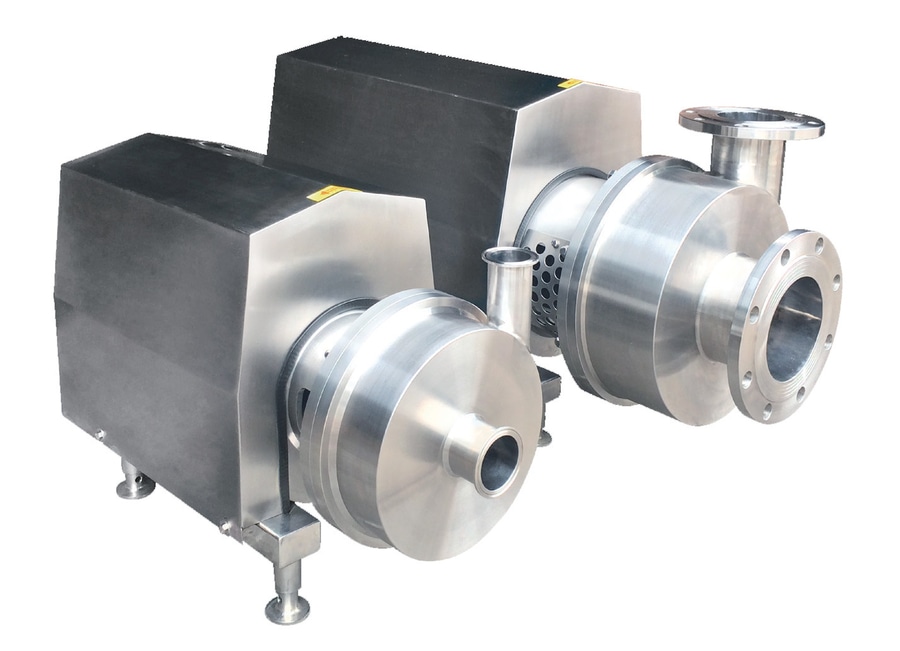

FLAT VANE PUMP(NO-BLOCKING DISC PUMP)

Summary

The principle Is that the special flat board is adopted as the vane.th rough the physicaI
viscous driving and the special structure of flat vane.the medium will form Iaminar flow to pulI
the medium from the inlet and push it to the outlet centrifugal flat vane pump is designed to
transport fluid medium through the physical viscosity driving and the Iaminar flow formed by
the medium Therefore, the medium wilI make bar-shaped flow inside the pump without lmpact.
the medium contacting the vane and the flow Iayer of tube wall are static to the vane,and they
can move synchronously without friction,so that there is no medium impact that may damage
the product,and the laminar flow of pump can be protected Therefore,the flat vane pump can
absolutely solve the common problems of produet damage abrasion of vane and pump body
caused by media,vane blocking and occurrence of cavitation etc. The special functions of flat
vane pump enable the pump to work under severe conditions more reliably more excellently.
more economically and more efficiently. Most important of all.it wilI not damage the mediu.It is
applicable for transporting media of different viscosity,media of high viscosity,media with solid
particles,media requiring that the particles should be protected from being damaged and media
requiring soft transportation and not be easily impacted by high speed centrlfugal impact.
Application range:it is applicable for transporting media of different viscosity,media of high viscosity
media with solid particles of more than 75%(accord-ing to the requirement.it can be designed
to transport particles of 30—80mm),media requiring that the particles should be protected from
being damaged,media with gas or air of more than 68%,cotton pulp and wood pulp containing
various fibers.media requiring soft transportation and not be easily impacted by high speed
centrituqaI impact,as welI as sewage waste etc.
Product:the special functions of flat vane pump enable the pump to work under severe
conditions more reliably more excellently, more economically and more efficiently. Most important
of all, it wilI not damage the medium. Even the crispy blood cells will not be damaged when
transported by flat vane pump.There is no winding or blocking when transporting particles,long
fibers and sediments When it is transported the flat vane pump.the paper pulp can pass without
impact so as to guarantee the equality of fluid. There has no the occurrence of dehydration and
loss of fiber. The flat vane pump has such advantages as no impact,no pulse.no radial load and
no abrasion. Therefore,the parts of flat vane pump do not need too much replacement and repair.
It is widely applied in pharmacy, biological engineering,chemical sewage,wine,starch, paper&pulp,
food etc lndustries. The pump has excellent performance,reasonable structure and reliable use.
