Diaphragm Pumps

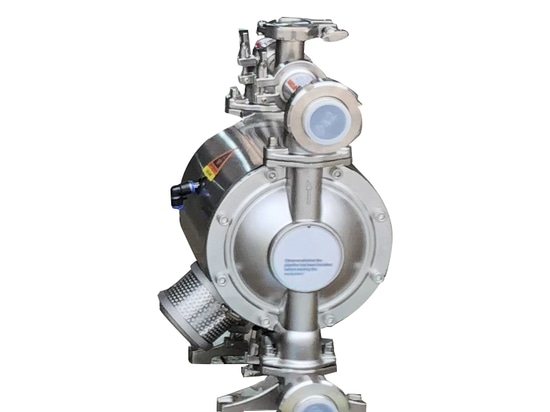

1.Leak-Free Operation: This is the most significant advantage. The fluid is completely sealed within the pump chambers and diaphragms, isolated from the drive mechanism. This theoretically allows for zero leakage, making it ideal for handling expensive, toxic, hazardous, corrosive, or flammable media. 2.Strong Self-Priming Capability: Diaphragm pumps typically prime well (run dry), can handle fluids containing gas, and have relatively high suction lift. 3.Handles High Viscosity, Abrasive, or Shear-Sensitive Fluids: They can transfer fluids across a wide viscosity range (from low-viscosity solvents to high-viscosity slurries, paints, etc.) and handle fluids containing solids (particle size depends on valve and flow path design). They are also gentler on shear-sensitive fluids (e.g., emulsions, yeast cultures). 4.Dry-Running & Overload Protection: If the inlet runs dry or the outlet becomes blocked, air-operated diaphragm pumps will stall or cycle harmlessly. Electric pumps have overload protection. This prevents damage unlike centrifugal pumps. 5.Adjustable Flow Rate: Flow can be easily controlled by adjusting air pressure (air-operated) or motor speed/stroke (electric). 6.Relatively Simple Structure & Easy Maintenance: Main wear parts are diaphragms and valve balls/seats, which are relatively easy to replace.

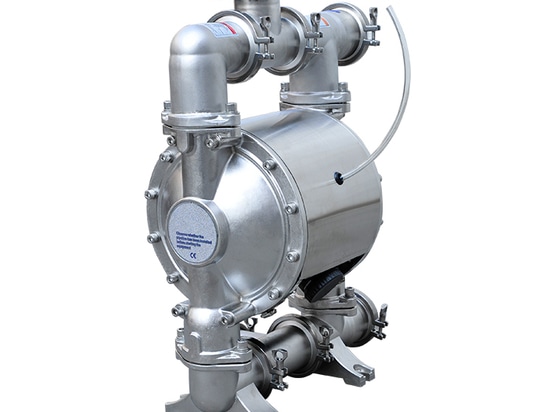

1.Chemical Industry: Transferring corrosive chemicals, solvents, acids, alkalis, paints, coatings, adhesives, resins. 2.Pharmaceutical & Food Industry: Transferring pharmaceutical liquids, ingredients, dairy products, jams, syrups, condiments (requires sanitary designs). 3.Water Treatment & Environmental Protection: Handling wastewater, sludge, flocculants, disinfectants. 4.Mining & Ceramics: Transferring mineral slurries, ceramic glazes, muds. 5.Ink & Printing: Transferring various inks. 6.General Industry: Used as metering pumps, recirculation pumps, dosing pumps, transfer pumps.
